Honeywell RA890F1346-REB
Details
NOTE: PURCHASE OF THIS PRODUCT REQUIRES RETURN OF A REPAIRABLE CORE CONTROL. CLICK HERE FOR DETAILS.

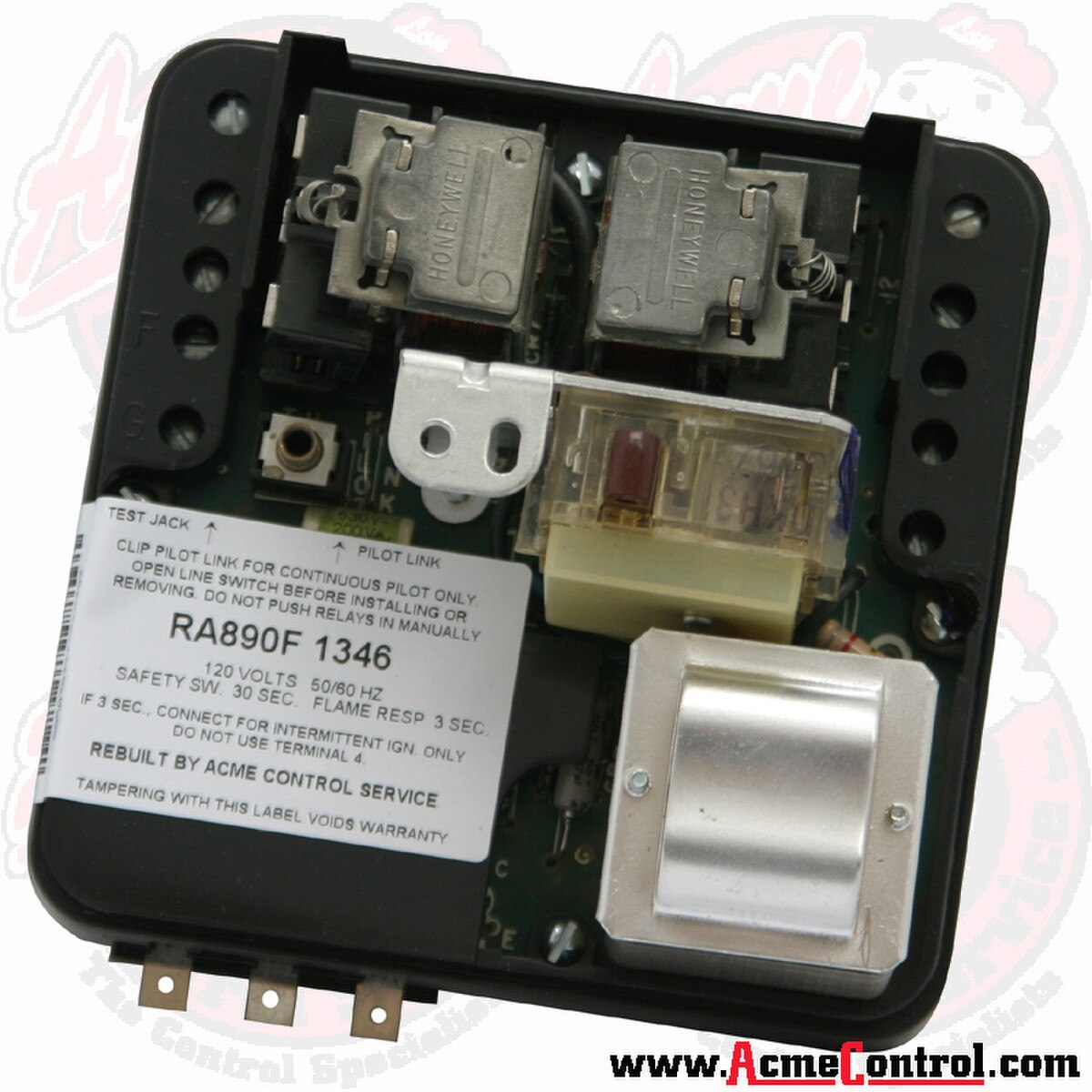

Honeywell RA890F1346 Primary Control- Repaired by Acme Controls
| * | Rectification flame detection. | |
| * | Replaces RA890E in most applications and mounts on same Q270A1024 sub-base. | |
| * | Recycles if flame signal is lost while in run. Failure to establish pilot results in a lockout. | |
| * | Safe-start check prevents start-up if flame-simulating failure occurs in flame detector circuit. | |
| * | Includes built-in protection against ignition crossover in flame rod systems. | |
| * | Includes SPDT alarm contacts. | |
| * | Solid state circuitry. | |
| * | Mounts and removes easily through use of captive mounting screws. | |
| * | Mounting base is made of strong thermoplastic. |
Specifications:
| Voltage: | 120 |
| Ambient Temperature (@60Hz): | 10°F (-12°C)-115°F (46°C) |
| Safety Timing: | 30s |
| Flame Response: | 3s |
| Alarm output: | Yes |
