RA890G1260-REB

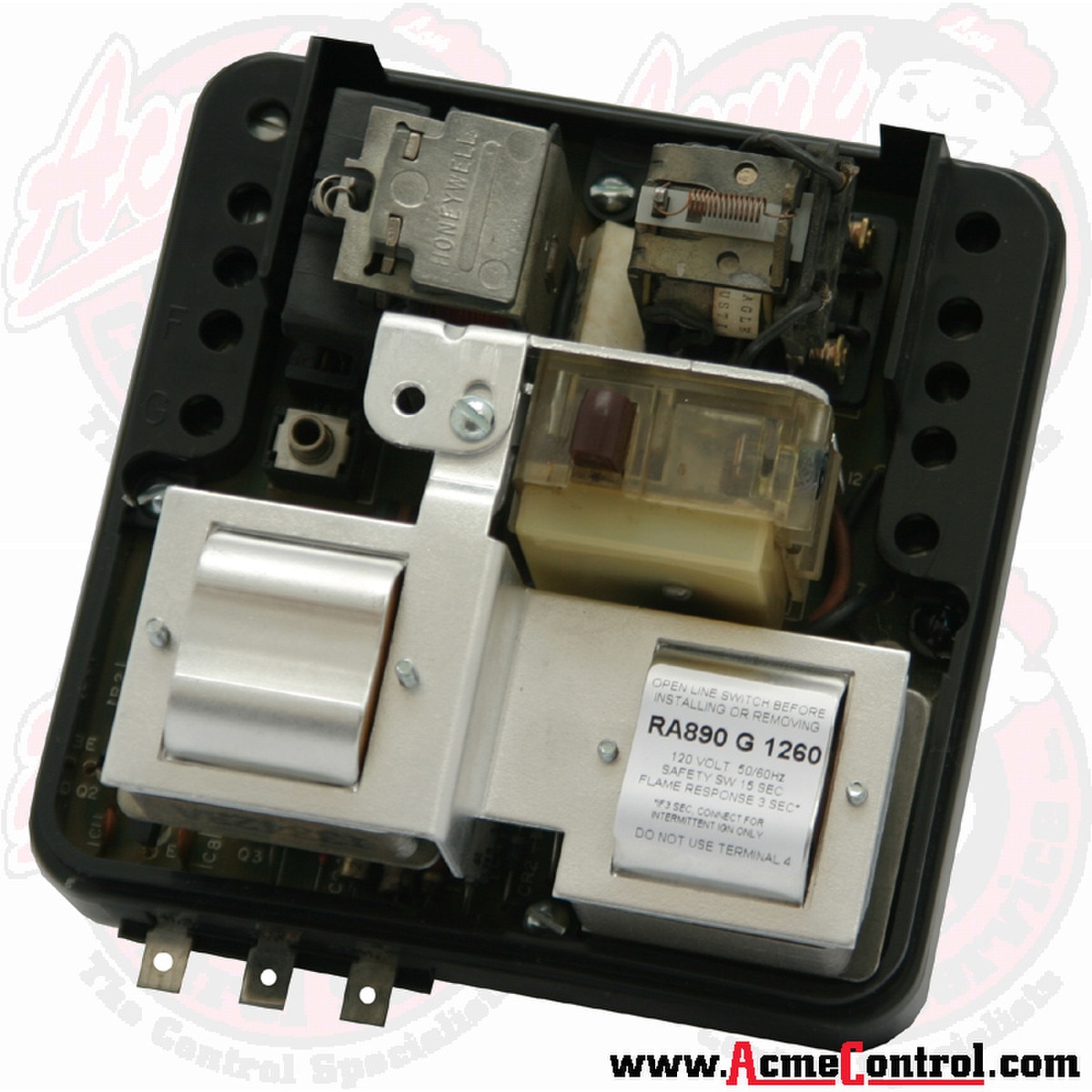

Honeywell RA890G1260 Primary Control - Repaired by Acme Controls
| * | UV flame detection. | |
| * | Recycles if flame signal is lost while in run. Failure to establish pilot results in a lockout. | |
| * | Safe-start check prevents start-up if flame-simulating failure occurs in flame detector circuit. | |
| * | Includes built-in protection against ignition crossover in flame rod systems. | |
| * | Includes SPDT alarm contacts. | |
| * | Solid state circuitry. | |
| * | Mounts and removes easily through use of captive mounting screws. | |
| * | Mounting base is made of strong thermoplastic. |
Specifications:
| Voltage: | 120 |
| Ambient Temperature (@60Hz): | -20°F (-29°C)-115°F (46°C) |
| Safety Timing: | 15s |
| Flame Response: | 3s |
| Alarm output: | Yes |
Advance Replacement Services
This item, ending with -REB, is a repair service. In purchasing this service, you are agreeing to send us your non-functional, but repairable, control. It must not be burned, cannot have any water damage, and cannot be physically broken.
To simplify the return shipping process, a UPS Return Service (RS) Label will be added to your order and the cost of that return service will be included as a separate line item. You will receive a Return Merchandise Authorization (RMA) form and this UPS label in the carton along with the item(s) you have purchased.
Within 10 days of receiving your Rebuilt/Repair part, you must send your repairable control and RMA form back to Acme using the included UPS label. Failure to return a repairable core could result in additional charges of $200-$5000.
Cores returned after more than 10 days could result in late return fees of 10-100% of core charges.
