R4795A1016-REB

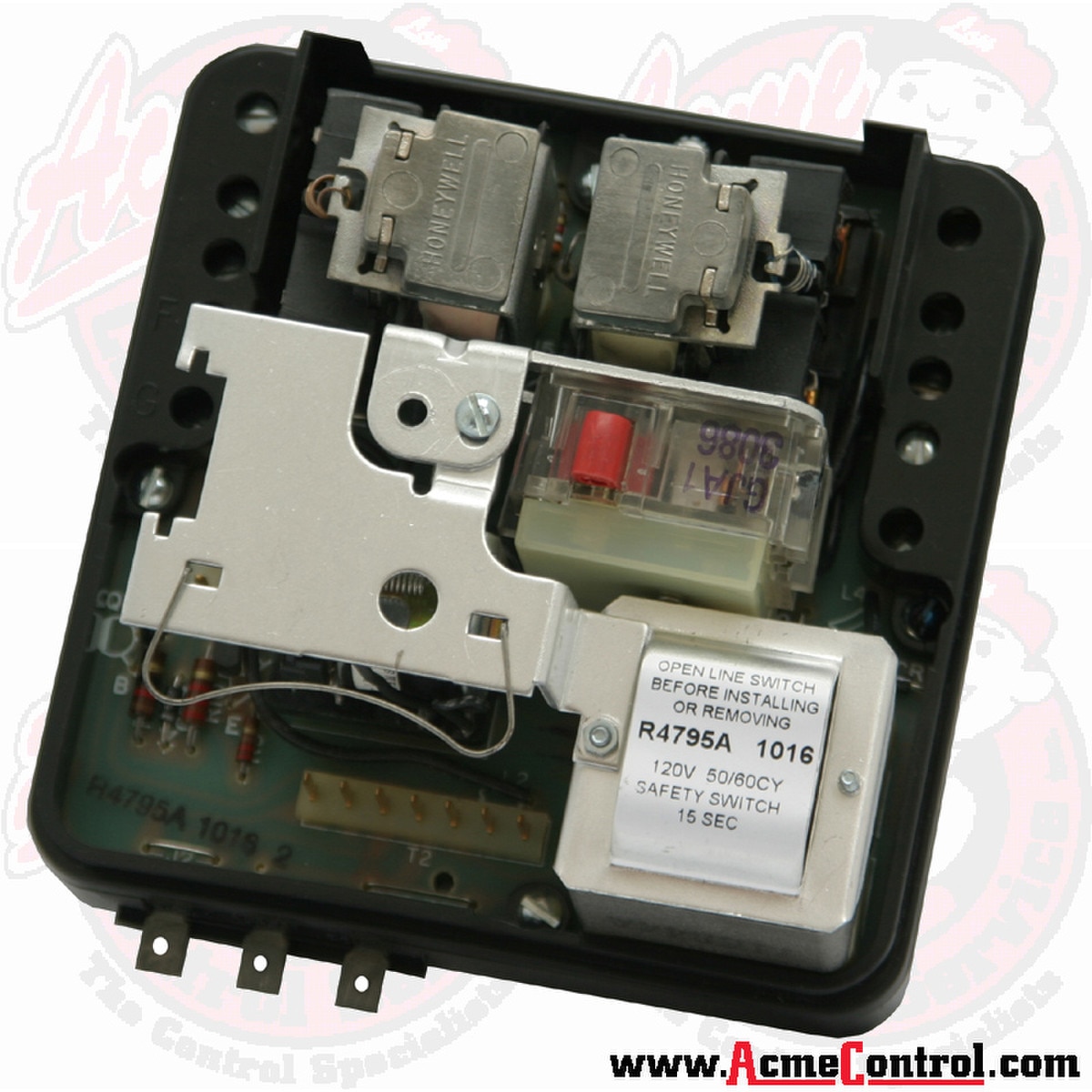

Honeywell R4795A1016 Primary Control - Repaired by Acme Controls
Primary control provides solid state electronic flame safeguard protection for commercial and industrial gas or oil burners.
Features| * | Electronic rectification or ultraviolet flame detection, with appropriate color-coded plug-in amplifier. | |
| * | Variable prepurge timing, with use of preferred plug-in purge timer card. | |
| * | Recycles through prepurge if flame signal is lost while in run. Failure to establish pilot results in a lockout. | |
| * | Safe-start check prevents start-up if flame failure occurs. | |
| * | Includes built-in protection against ignition crossover in flame rod systems. | |
| * | Includes SPDT alarm contacts. | |
| * | Solid state circuitry. | |
| * | Mounts and removes easily through use of captive mounting screws. | |
| * | Mounting base is made of strong thermoplastic. |
Acme recommends purchasing the entire package, including a flame amplifier and timer. It will save you time and aggravation in the long run!
| Specifications | |
| Weight (lbs) | 3 |
| Voltage | 120 |
| Frequency | 50/60 Hz |
| Ambient Temperature | -20 to +125°F | -29 to +52°C |
| Electrical Connections | Mounting Screws |
| Shipping Weight | 4 |
| Mounting | Q270A1024 Subbase |
Don't forget your Flame Amplifier!!
| And don't forget your Prepurge Timer!!
|
Advance Replacement Services
This item, ending with -REB, is a repair service. In purchasing this service, you are agreeing to send us your non-functional, but repairable, control. It must not be burned, cannot have any water damage, and cannot be physically broken.
To simplify the return shipping process, a UPS Return Service (RS) Label will be added to your order and the cost of that return service will be included as a separate line item. You will receive a Return Merchandise Authorization (RMA) form and this UPS label in the carton along with the item(s) you have purchased.
Within 10 days of receiving your Rebuilt/Repair part, you must send your repairable control and RMA form back to Acme using the included UPS label. Failure to return a repairable core could result in additional charges of $200-$5000.
Cores returned after more than 10 days could result in late return fees of 10-100% of core charges.
This item, ending with -REB, is a repair service. In purchasing this service, you are agreeing to send us your non-functional, but repairable, control. It must not be burned, cannot have any water damage, and cannot be physically broken.
To simplify the return shipping process, a UPS Return Service (RS) Label will be added to your order and the cost of that return service will be included as a separate line item. You will receive a Return Merchandise Authorization (RMA) form and this UPS label in the carton along with the item(s) you have purchased.
Within 10 days of receiving your Rebuilt/Repair part, you must send your repairable control and RMA form back to Acme using the included UPS label. Failure to return a repairable core could result in additional charges of $200-$5000.
Cores returned after more than 10 days could result in late return fees of 10-100% of core charges.
