Fireye E110-REB
Details
NOTE: PURCHASE OF THIS PRODUCT REQUIRES RETURN OF A REPAIRABLE CORE CONTROL. CLICK HERE FOR DETAILS.
Fireye E110 Flame-Monitor™ (Chassis only, cover sold separately) - Repaired by Acme Controls

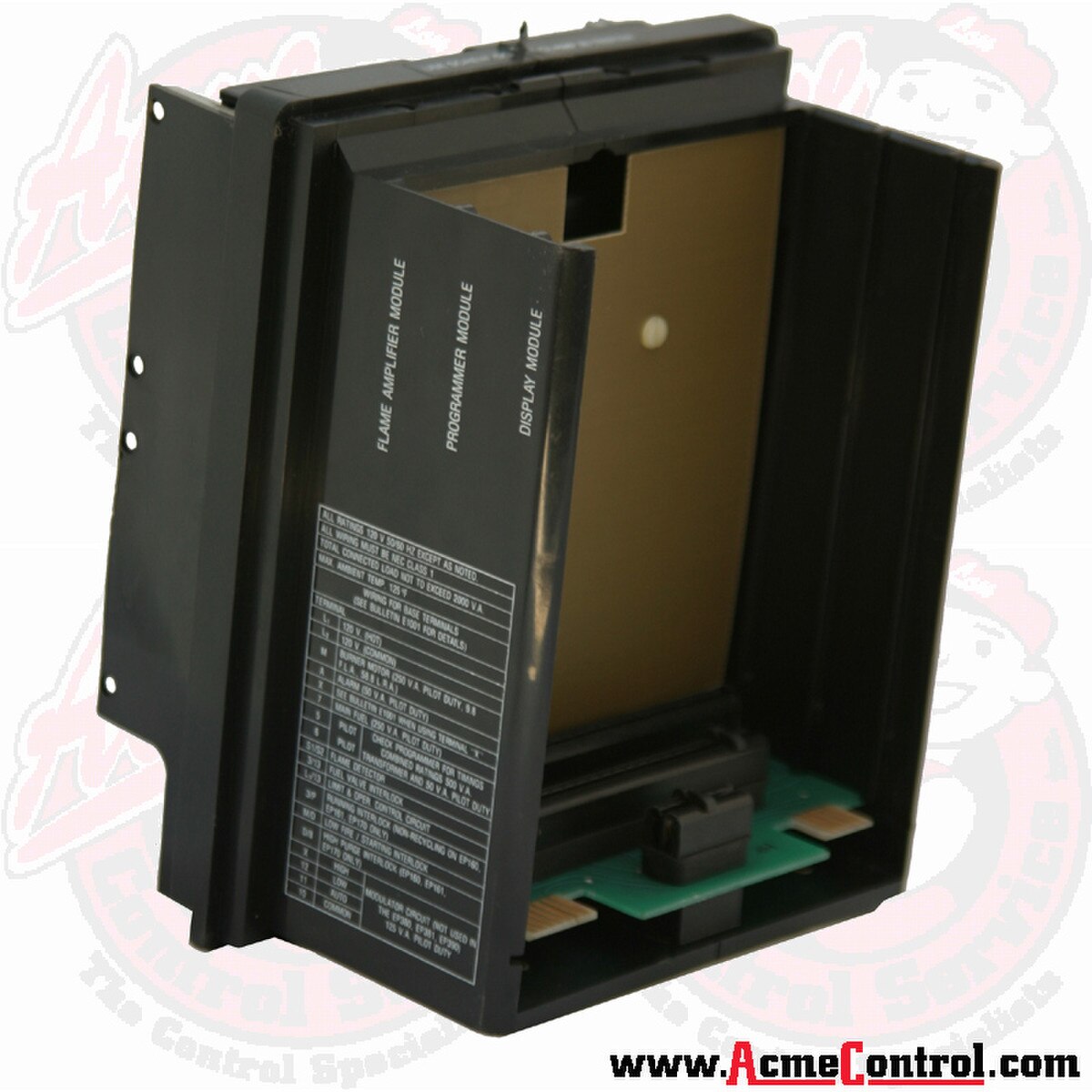

E110 is also referred to by its factory part number EB700. The picture on this page shows the EB700-REB, having the small card edge connector for use with the older ED500 LED display module. The newer E110-REB Chassis does not have this card edge connector present. Acme Controls distinguishes between the two chassis styles to help you maintain older units with ED500 displays.
Features
| * | Optional 2x16 character backlit LCD display w/3-button keypad. | |
| * | Interchangeable programmer and flame amplifier modules. | |
| * | Uses the same wiring base as the Fireye D-Series and C-Series Controls, eliminating the need to rewire. | |
| * | Optional remote reset, remote display, and remote data communications. | |
| * | Modbus communications via RS485 link. | |
| * | Field selectable purge time. |
| Specifications | |
| Weight (lbs) | 2 |
| Ambient Temperature | -40 to +140°F(-40 to +60°C) |
Acme recommends purchasing the entire package, including the E110 chassis, appropriate flame amplifier (see below), programmer module (see below), and display. It will save you time and aggravation in the long run!
Don't forget your Flame Amplifier!!
| Amplifier Part # | Description | Compatible Scanner |
| EUV1 | Standard UV Amplifier | UV1A, UV81, 45UV3, UV2 |
| E1R1 | Autocheck Infrared Amplifier | 48PT2 |
| ERT1 | Rectification Amplifier | 69ND1 |
| EUVS4 | Self-Check UV Amplifier | 45UV5-1007/1008/1009 |
And...your programmer module!!
| Programmer # | Description |
| EP160 or EPD160 | Non-Recycle, 10s-15s TFI |
| EP161 | Non-Recycle, Extended MTFI |
| EP165 | Non-Recycle, Pilot stabilization |
| EP170 or EPD170 | Non-Recycle, Early spark termination |
| EP260 | Recycle, 10s-15s TFI |
| EP380 or EPD380 | Non-Modulation, 30s purge |
| EP381 | Non-Modulation, 15s purge |
| EP382 | Non-Modulation, 1s purge |
| EP390 | Non-Modulation, 90s purge |
And...your display!!
| Display # | Description |
| ED500 | LED display |
| ED510 | 2x16 character back-lit display |
