ED510-REB

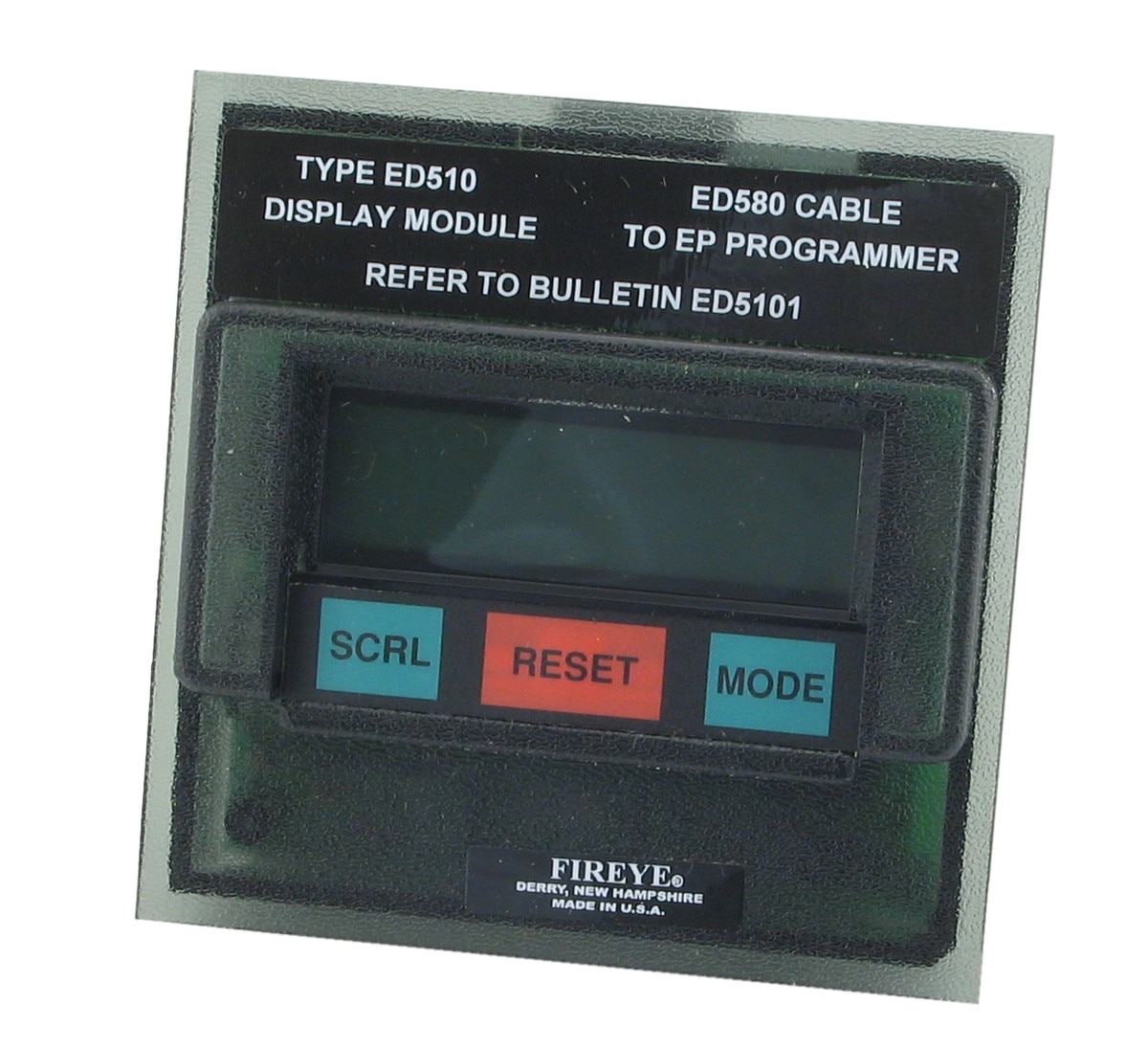

Fireye ED510 Display Module - Repaired by Acme Controls
Display module designed to operate with the E110 Flame-Monitor™ Burner Management Control System, required when using the EP style programmer module, and optional when using the EPD style programmer module.
Features
| * | 2x16 character backlit LCD display. | |
| * | 3-button keypad. | |
| * | Mounts directly on front face of programmer modules. |
| Specifications | |
| Weight (lbs) | 2 |
| Ambient Temperature | +32 to +140°F(0 to +60°C) |
Acme recommends purchasing the entire package, including the EB700 chassis, appropriate flame amplifier (see below), programmer module (see below), and display. It will save you time and aggravation in the long run!
Don't forget your Flame Amplifier!!
| Amplifier Part # | Description | Compatible Scanner |
| EUV1 | Standard UV Amplifier | UV1A, UV81, 45UV3, UV2 |
| E1R1 | Autocheck Infrared Amplifier | 48PT2 |
| ERT1 | Rectification Amplifier | 69ND1 |
| EUVS4 | Self-Check UV Amplifier | 45UV5-1007/1008/1009 |
Advance Replacement Services
This item, ending with -REB, is a repair service. In purchasing this service, you are agreeing to send us your non-functional, but repairable, control. It must not be burned, cannot have any water damage, and cannot be physically broken.
To simplify the return shipping process, a UPS Return Service (RS) Label will be added to your order and the cost of that return service will be included as a separate line item. You will receive a Return Merchandise Authorization (RMA) form and this UPS label in the carton along with the item(s) you have purchased.
Within 10 days of receiving your Rebuilt/Repair part, you must send your repairable control and RMA form back to Acme using the included UPS label. Failure to return a repairable core could result in additional charges of $200-$5000.
Cores returned after more than 10 days could result in late return fees of 10-100% of core charges.
