EB700-REB

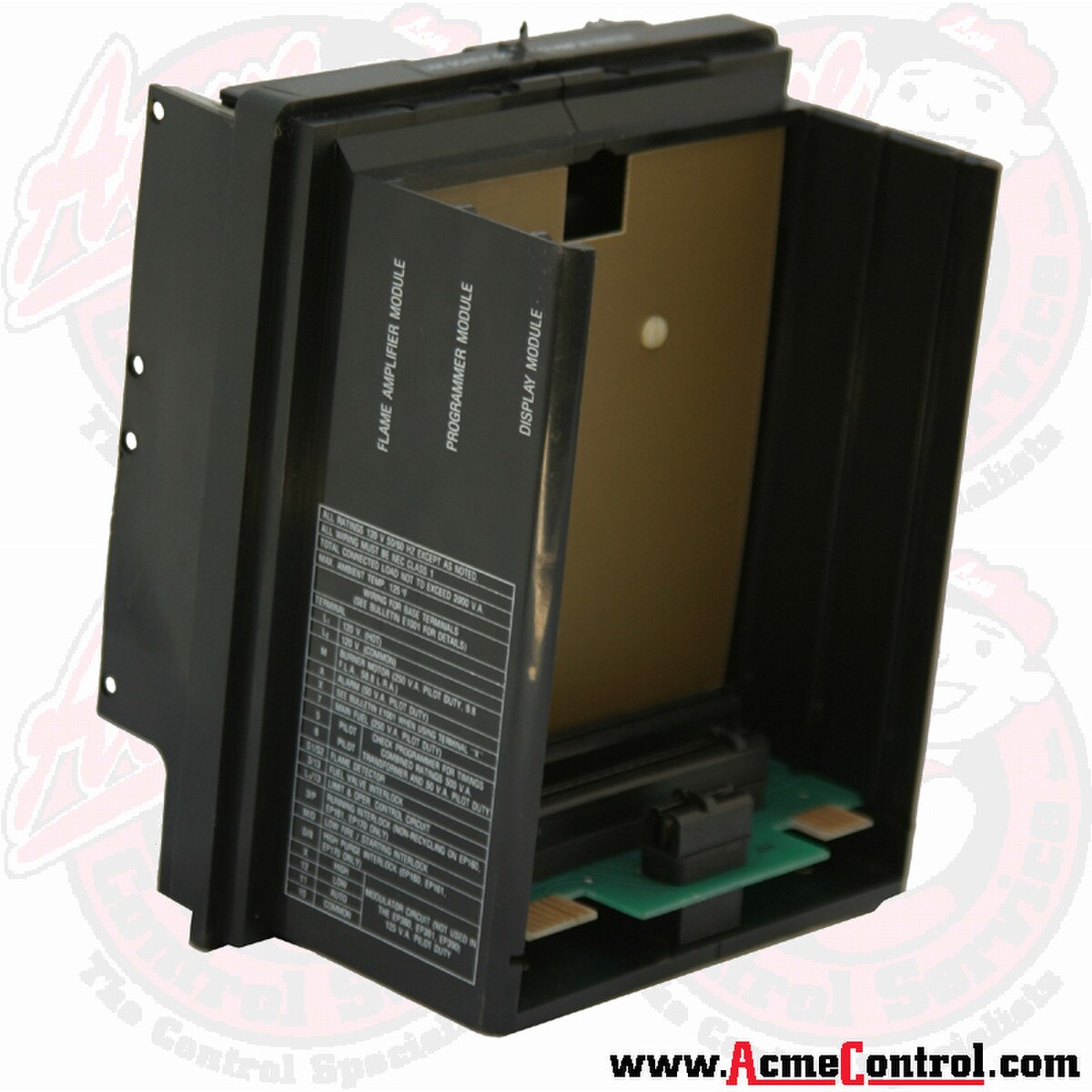

Fireye E110 Flame-Monitor™ (Chassis only, cover sold separately) - Repaired by Acme Controls
EB700 is the factory part number for the Fireye E110 Flame-Monitor™ Burner Management Control System. Acme Controls repairs EB700 units with the small card edge connector for use with the older ED500 LED display module. If your application uses the ED510 LCD display, you can order the newer E110 unit, but will not be able to use the older ED500 LED display module.
Features
| * | Optional 2x16 character backlit LCD display w/3-button keypad. | |
| * | Interchangeable programmer and flame amplifier modules. | |
| * | Uses the same wiring base as the Fireye D-Series and C-Series Controls, eliminating the need to rewire. | |
| * | Optional remote reset, remote display, and remote data communications. | |
| * | Modbus communications via RS485 link. | |
| * | Field selectable purge time. |
| Specifications | |
| Weight (lbs) | 2 |
| Ambient Temperature | -40 to +140°F(-40 to +60°C) |
Acme recommends purchasing the entire package, including the E110 chassis, appropriate flame amplifier (see below), programmer module (see below), and display. It will save you time and aggravation in the long run!
Don't forget your Flame Amplifier!!
| Amplifier Part # | Description | Compatible Scanner |
| EUV1 | Standard UV Amplifier | UV1A, UV81, 45UV3, UV2 |
| E1R1 | Autocheck Infrared Amplifier | 48PT2 |
| ERT1 | Rectification Amplifier | 69ND1 |
| EUVS4 | Self-Check UV Amplifier | 45UV5-1007/1008/1009 |
And...your programmer module!!
| Programmer # | Description |
| EP160 or EPD160 | Non-Recycle, 10s-15s TFI |
| EP161 | Non-Recycle, Extended MTFI |
| EP170 or EPD170 | Non-Recycle, Early spark termination |
| EP260 | Recycle, 10s-15s TFI |
| EP380 or EPD380 | Non-Modulation, 30s purge |
| EP381 | Non-Modulation, 15s purge |
| EP382 | Non-Modulation, 1s purge |
| EP390 | Non-Modulation, 90s purge |
And...your display!!
| Display # | Description |
| ED500 | LED display |
| ED510 | 2x16 character back-lit display |
This item, ending with -REB, is a repair service. In purchasing this service, you are agreeing to send us your non-functional, but repairable, control. It must not be burned, cannot have any water damage, and cannot be physically broken.
To simplify the return shipping process, a UPS Return Service (RS) Label will be added to your order and the cost of that return service will be included as a separate line item. You will receive a Return Merchandise Authorization (RMA) form and this UPS label in the carton along with the item(s) you have purchased.
Within 10 days of receiving your Rebuilt/Repair part, you must send your repairable control and RMA form back to Acme using the included UPS label. Failure to return a repairable core could result in additional charges of $200-$5000.
Cores returned after more than 10 days could result in late return fees of 10-100% of core charges.
