Honeywell RA890F1270-REB

$243.04
SKU: RA890F1270-REB
Honeywell RA890F1270 repair services by Acme Controls (Also available as Acme Advance Replacement Services-see Detailed Description, below)
In Stock: 20
Back

Details

NOTE: PURCHASE OF THIS PRODUCT REQUIRES RETURN OF A REPAIRABLE CORE CONTROL. CLICK HERE FOR DETAILS.

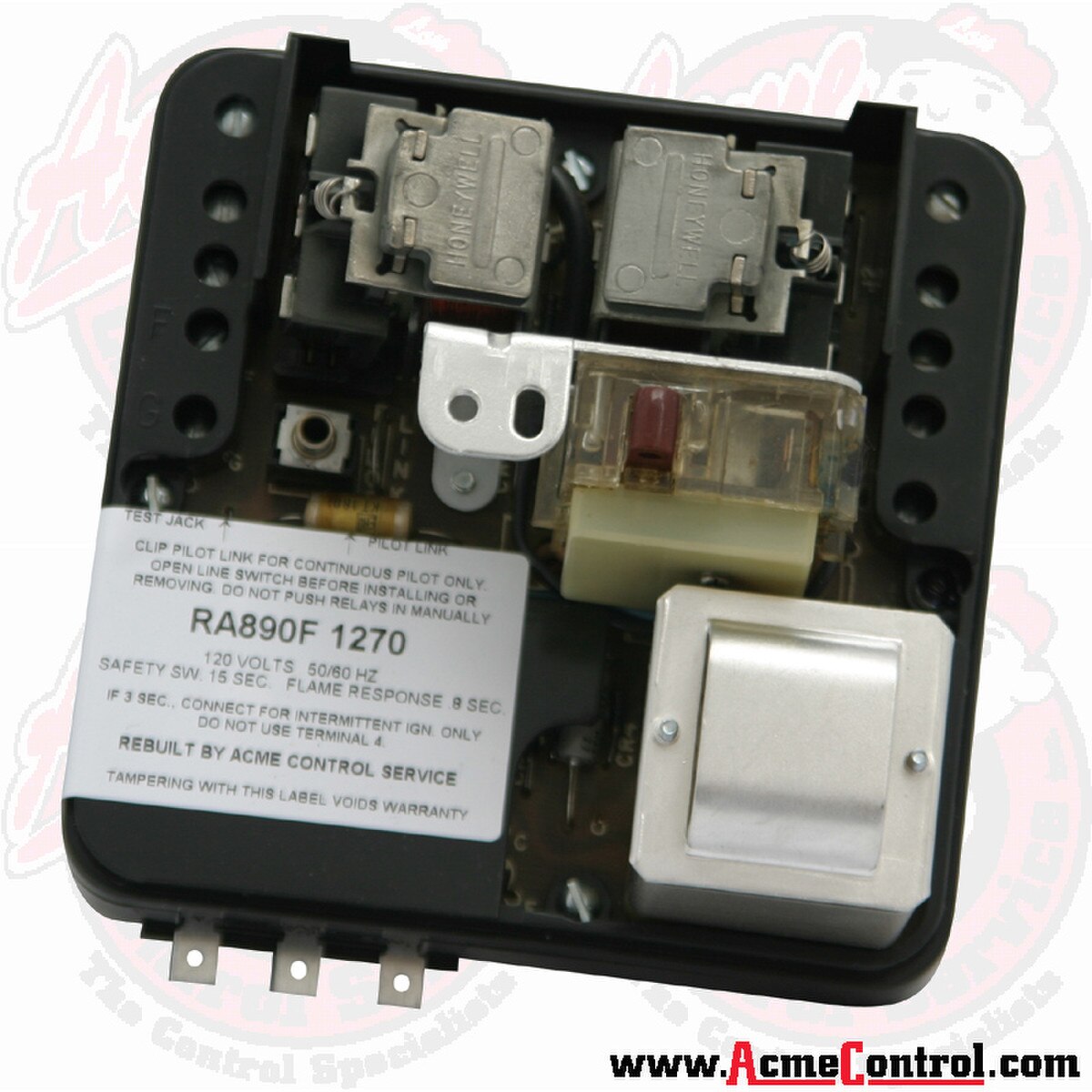

Honeywell RA890F1270 Primary Control- Repaired by Acme Controls

*Electronic rectification flame detection.
*Replaces RA890E in most applications and mounts on same Q270A1024 sub-base.
*Recycles if flame signal is lost while in run. Failure to establish pilot results in a lockout.
*Safe-start check prevents start-up if flame-simulating failure occurs in flame detector circuit.
*Includes built-in protection against ignition crossover in flame rod systems.
*Includes SPDT alarm contacts.
*Solid state circuitry.
*Mounts and removes easily through use of captive mounting screws.
*Mounting base is made of strong thermoplastic.

Specifications:
Voltage:120
Ambient Temperature (@60Hz):-20°F (-29°C)-115°F (46°C)
Safety Timing:15s
Flame Response:0.8s
Alarm output:Yes
Shipping Weight:3 lbs.

The Honeywell RA890F 120V Protectorelay provides flame safeguard protection for single or dual burners. The RA890F line of primary controls is a non-programming, rectification flame amplifying relay providing solid state safeguard protection for industrial and commercial gas, oil, or combination burners.


Other popular models include RA890F1247, RA890F1254, RA890F1262, RA890F1288, and RA890F1338. We rebuild ALL RA890F models and have many of the very common ones on our shelf available to ship same day.


For instructions and technical information refer to the RA890F Protectorelay Primary Control manual.
