RM7800L1087
Details

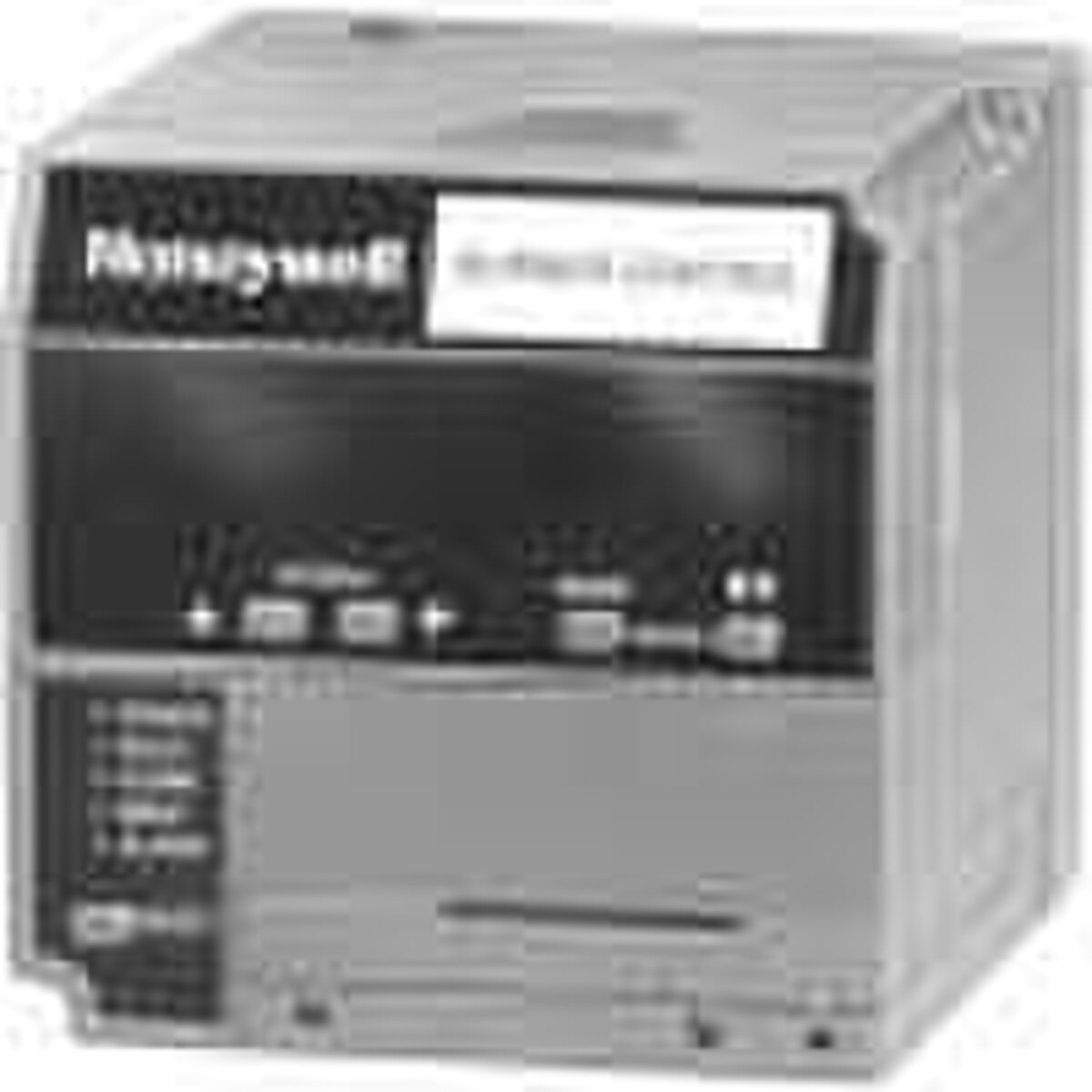

New Honeywell RM7800L 1087 Automatic Primary Control
| * | Save up to 75% on this control when you buy Acme Controls Rebuilt |
| Specifications | |
| Weight (lbs) | 4 |
| Voltage | 120 |
| Frequency | 50/60 Hz |
| Ambient Temperature | -40 to +140°F(-40 to +60°C) |
| Application | Gas, Oil, or Coal |
| Shipping Weight (lbs) | 4 |
| Purge time | Determined by purge timer card |
| Mounting | Q7800A1005 Panel Mount Subbase |
| Q7800B1003 Burner/Wall (2 KO) Mount Subbase | |
| Q7800B1011 Burner/Wall (3 KO) Mount Subbase |
Reaching End-Of-Life. Honeywell factory upgrade is RM7800L2087, which will require a new subbase and rewiring for verified earth ground.
