L404F1060

$248.72
SKU: L404F1060
Mercury Free Pressuretrol W/SPDT Microswitch 2-15 PSI R-W Make R-B Break On Pres

This item is currently out of stock. It may be only a day or two away, or it may be obsolete or replaced. We will accept your order for this item and contact you with expected availability. Or you may call Acme Controls at 800-621-6427, and speak to one of our Customer Service representatives for assistance.

Back

Details

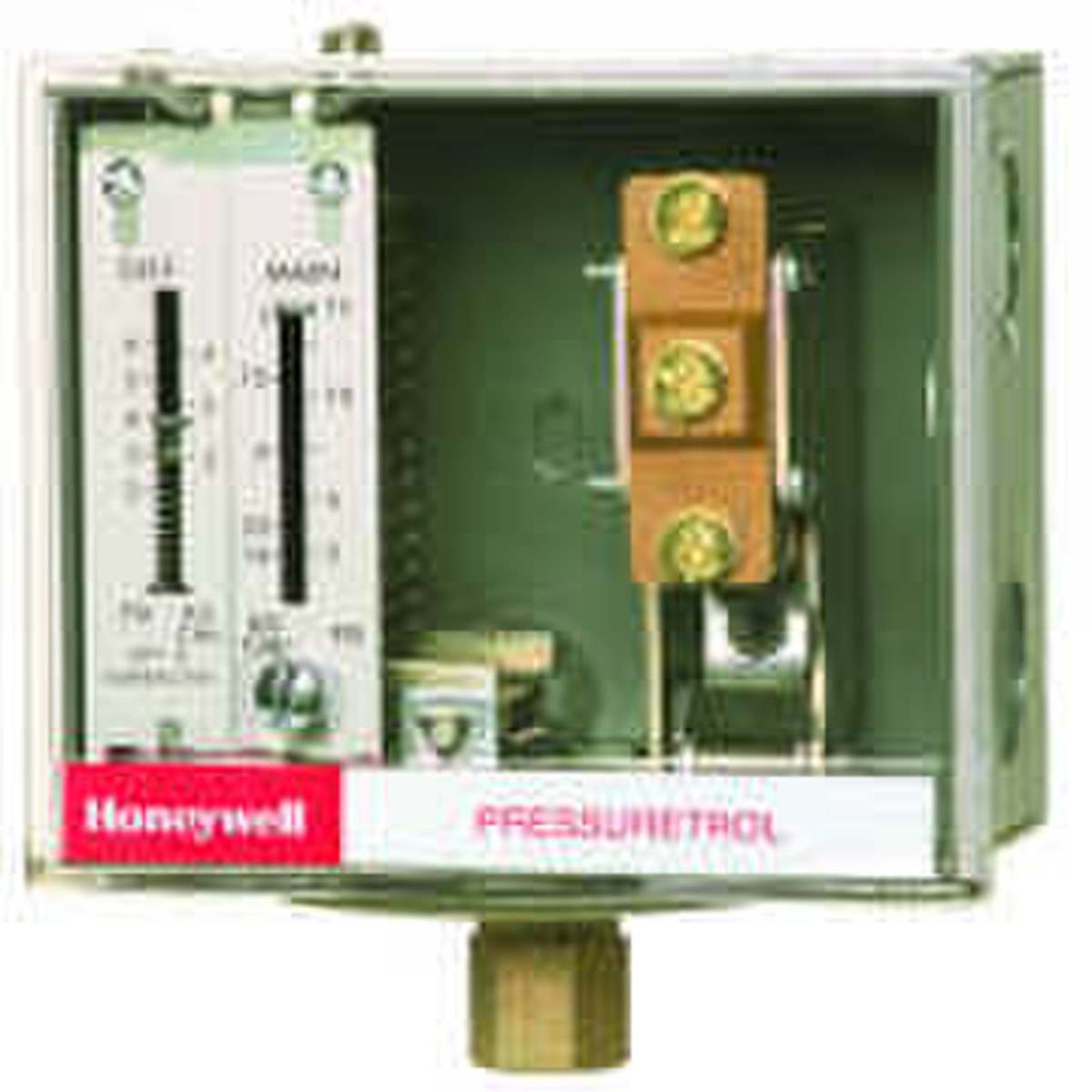

Honeywell L404F1060

2-15lbs pressure Mercury free
Honeywell Pressuretrol Steam Pressure Control L404F1060, 1/4 NPT Female, 2-15 PSI

Features

Provide operating control with automatic limit protection for pressure systems up to 300 PSI (2068 KPA)
Use with steam, air, noncombustible gases, or fluids non-corrosive to pressure sensing element
Models have snap-acting switching to open or close a circuit on pressure rise
Have adjustable differentials
Adjustments are made by screws on top of case
Mount using 1/4 inch -18 NPT internal pipe threads or surface mount through base of case
Ground screw terminal



Specifications
Weight (lbs)4
Voltage120/240
Ambient Temperature-20 to +150 F|-29 to +66 C
ApplicationSteam, Air, Non-Combustible Gases & Non-Corrosive Fluids
Shipping Weight4
Mounting1/4"-18 NPT

Tech Sheet
