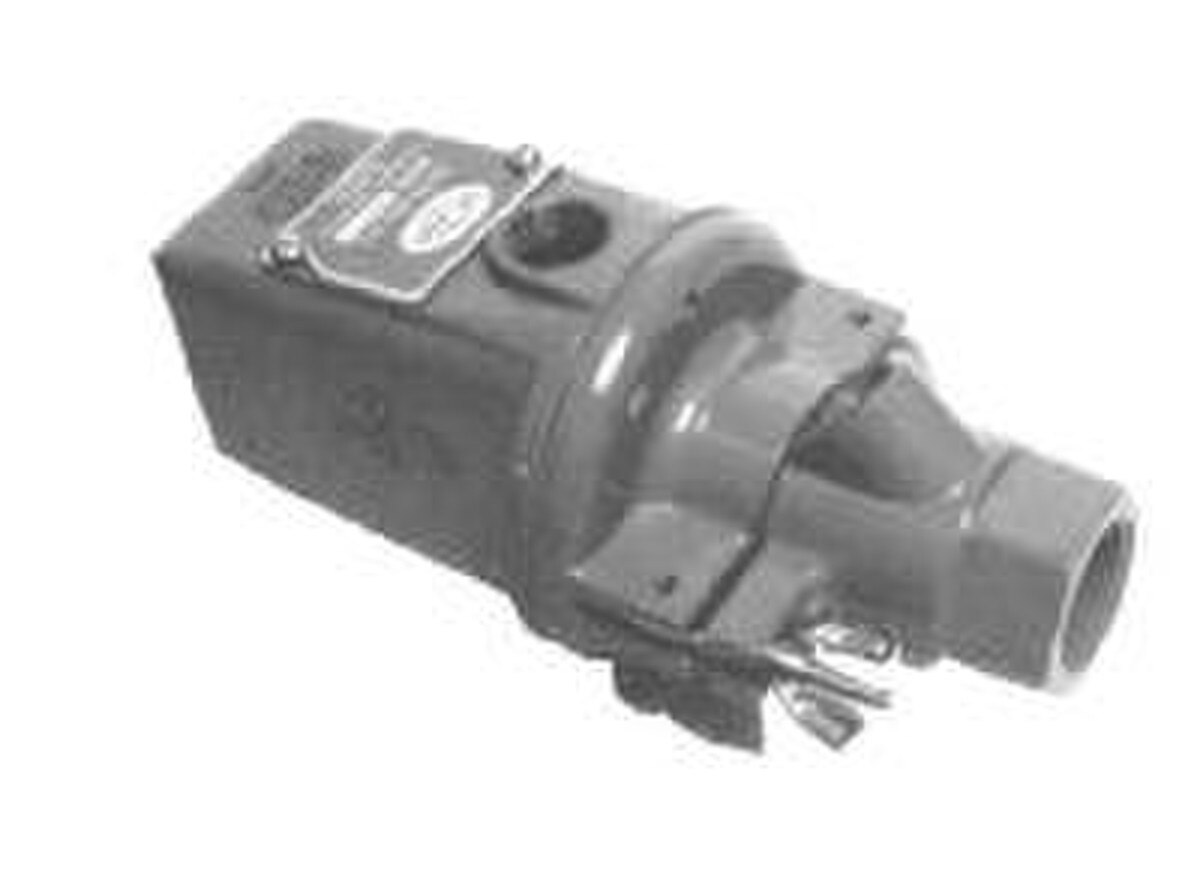

New Fireye 45UV5 1009 Self-Checking Ultraviolet Scanner
Self-checking ultraviolet scanner for continuously fired applications where recycling is infrequent or absent.
| Features | |
| * | Self-checking circuit checks the electronics and the UV tube for proper operation every four seconds during the firing period. |
| * | Suitable for fuel gases and oil. |
| * | Replaceable UV tube (4-314-1) and shutter mechanism (61-2914). |
| * | Mounting 1" NPT or BSP pipe thread with 8ft(2.4m) lead wires. |
| * | Must be installed with metal shielding over the scanner leads. |
| * | Explosion-proof housings available. (Bulletin SC-101). |
| Specifications: |
| Ambient Temperature | -40 to +200°F(-40 to +93°C) |
| Application | Gas/Oil |
| Shipping Weight | 4 |
| Mounting | 1 in. NPT |
Tech Sheet
