Fireye MEC120-REB
Details
NOTE: PURCHASE OF THIS PRODUCT REQUIRES RETURN OF A REPAIRABLE CORE CONTROL. CLICK HERE FOR DETAILS.

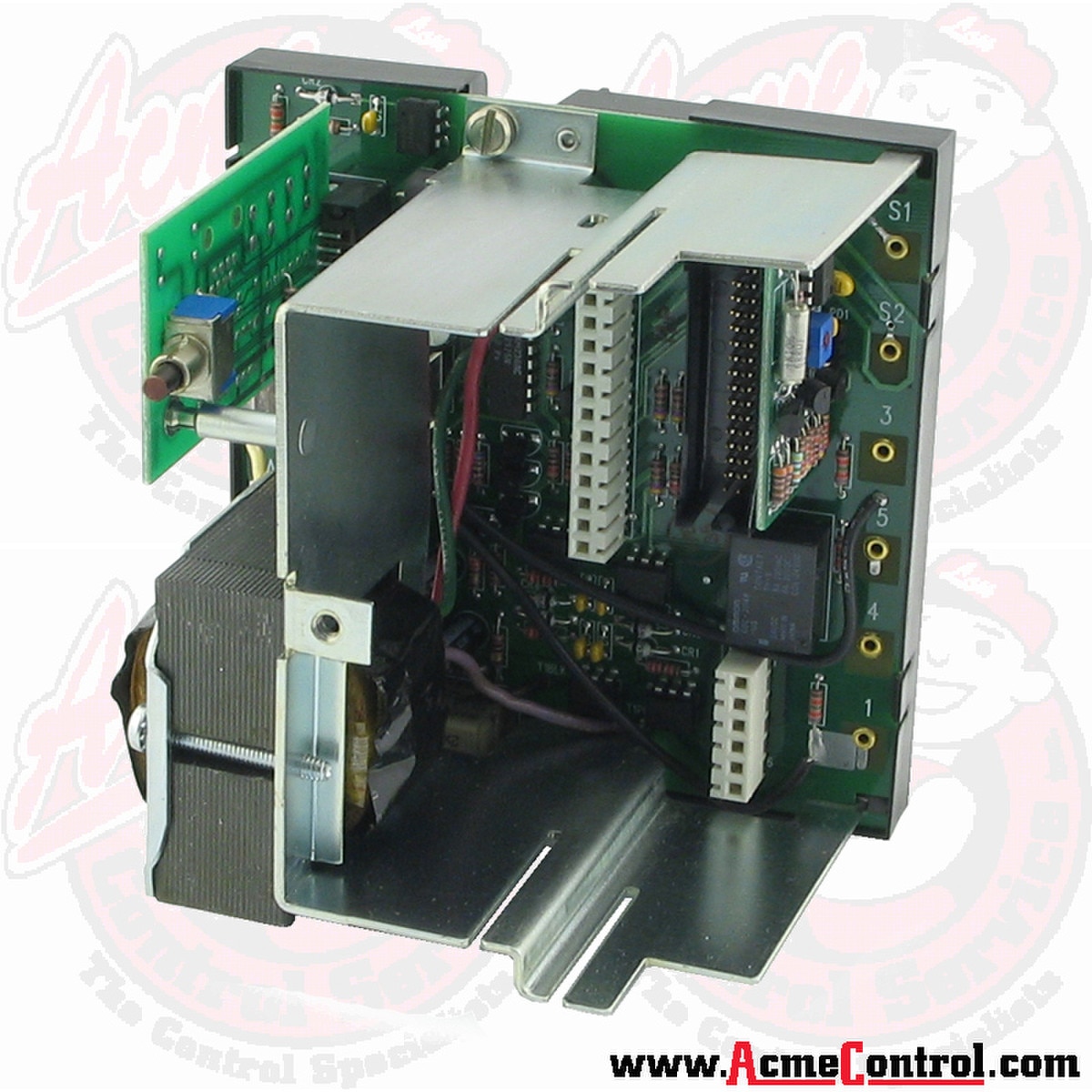

Fireye MEC120 MicroM (Chassis only, cover sold separately) - Repaired by Acme Controls
Acme Controls recommends you purchase the complete package, including the chassis, amplifier, and program module. Save yourself time and aggravation at the job site.
Need a cover? Rebuilt covers sold separately.
Plug-In Amplfiers (more common)
| Ultraviolet (UV) | Rectification | Infrared (IR) | |
| MEUV1-REB | MERT1-REB | MEIR1 (new) | |
| MEUV4-REB | MERT4-REB | MEIR4 (new) | |
| MEUVS4-REB |
Program Modules
| Part Number | Description |
| MEP100-REB | Relight operation, 10 sec PTFI |
| MEP101-REB | Relight operation. Programmer will not lockout on flame signal during "off cycle." |
| MP102-REB | Non-recycle on flame fail, 5 second PTFI. |
| MP230-REB | Selectable purge timing, trial for ignition timing, and recycle/non-recycle operation. |
| MP230H-REB | Selectable purge timing, trial for ignition timing, pilot stabilizing period, and recycle/non-recycle operation. For use with two stage burners. |
| MP560-REB | Selectable purge timing, pilot trial for ignition timing, pilot stabilizing period, and recycle/non-recycle operation. 10 second main flame trial for ignition, run-check switch. |
| MP561-REB | MP560 programmer without pilot stabilization period. |
| MP562-REB | MP560 programmer with lockout on loss of air flow. Non-recycle operation only. |
| UV Scanner Part # | Description |
| UV1A3 (new) | ½in mount, 3ft cable |
| UV1A6 (new) | ½in mount, 6ft cable |
| UV2 (new) | ⅜in mount, 3ft cable |
| UV8A (new) | ½ in mount, 6ft unshielded cable |
| 45UV3-1050 (new) | ⅜in mount, cast alum. housing, 8ft cable |
| UV90-3 (new) | 90° lateral view w/3 ft. flex conduit |
| UV90-6 (new) | 90° lateral view w/6 ft. flex conduit |
| UV90-9 (new) | 90° lateral view w/9 ft. flex conduit |
| Flame Rod Part # | Description |
| 69ND1-1000K4 (new) | 12-in. |
| 69ND1-1000K6 (new) | 18-in. |
| 69ND1-1000K8 (new) | 24-in. |
| Wiring Base Part # | Description |
| 61-3060 (new) | Closed wiring base |
| 61-5042 (new) | Open wiring base, cabinet mount |
