MEC120

$365.45
SKU: MEC120

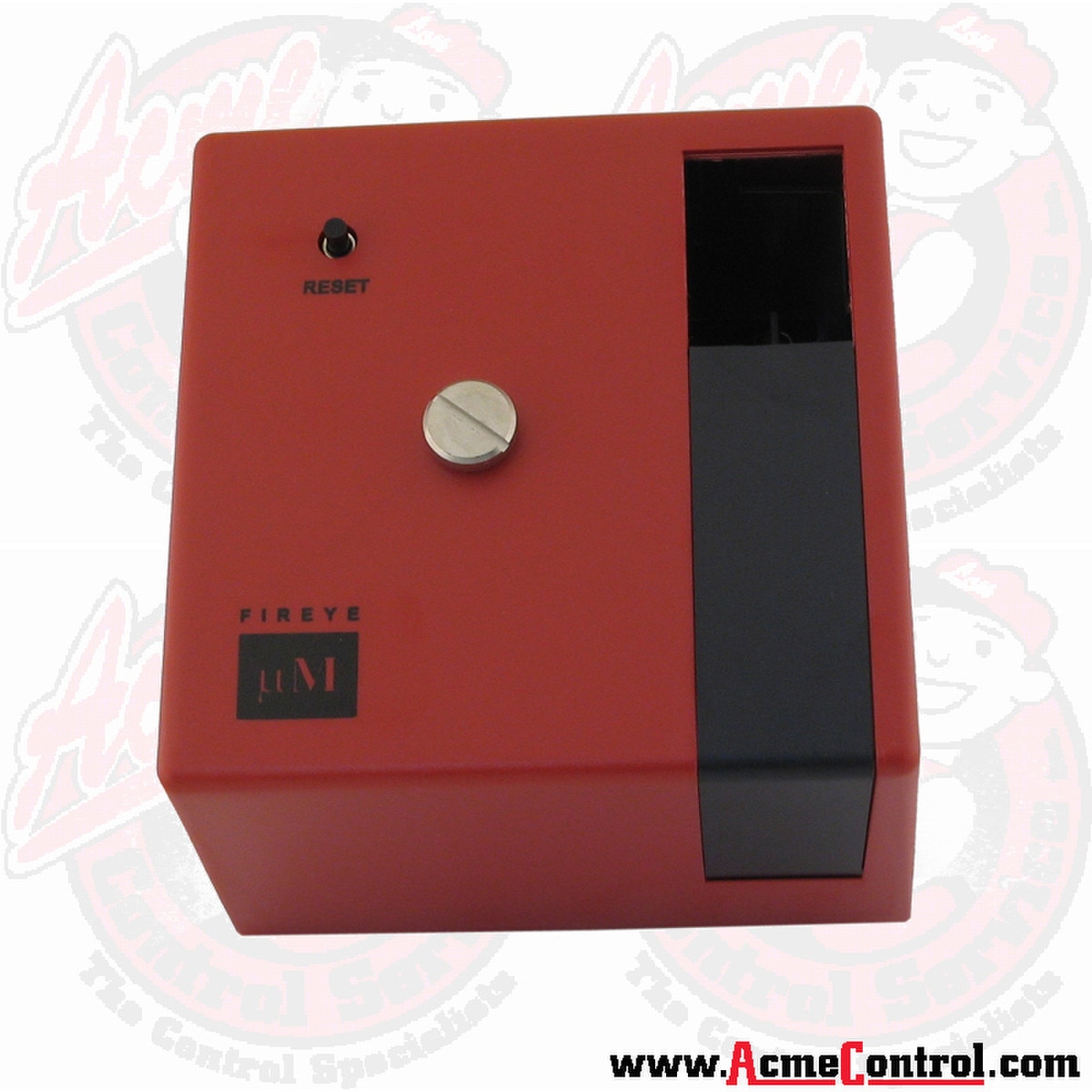

120V MICRO M CHASIS

This item is currently out of stock. It may be only a day or two away, or it may be obsolete or replaced. We will accept your order for this item and contact you with expected availability. Or you may call Acme Controls at 800-621-6427, and speak to one of our Customer Service representatives for assistance.

Back

Details

The MicroM Series Flame Safeguard Control is a compact, microprocessor based, modular burner management system designed to provide automatic ignition and continuous flame monitoring for commercial sizes of heating and process equipment that use gas and/or light oil fuels. MEC120 uses standard plug-in daughter boards.


Save money with MEC120-REB repaired by Acme Controls.


Acme Controls recommends you purchase the complete package, including the chassis, amplifier, and program module. Save yourself time and aggravation at the job site.


Plug-In Amplfiers (more common)

Ultraviolet (UV)RectificationInfrared (IR)
MEUV1MERT1MEIR1
MEUV4MERT4MEIR4
MEUVS1
MEUVS4


Program Modules (more common)

Part NumberDescription
MEP100Relight operation, 10 sec PTFI
MEP101Relight operation. Programmer will not lockout on flame signal during "off cycle."
MEP102Non-recycle on flame fail, 5 second PTFI.
MEP230Selectable purge timing, trial for ignition timing, and recycle/non-recycle operation.
MEP230HSelectable purge timing, trial for ignition timing, pilot stabilizing period, and recycle/non-recycle operation. For use with two stage burners.
MEP560Selectable purge timing, pilot trial for ignition timing, pilot stabilizing period, and recycle/non-recycle operation. 10 second main flame trial for ignition, run-check switch.
MEP561MP560 programmer without pilot stabilization period.
MEP562MP560 programmer with lockout on loss of air flow. Non-recycle operation only.


UV Scanner Part #Description
UV1A3�in mount, 3ft cable
UV1A6�in mount, 6ft cable
UV2⅜in mount, 3ft cable
UV8A� in mount, 6ft unshielded cable
45UV3-1050⅜in mount, cast alum. housing, 8ft cable
UV90-390° lateral view w/3 ft. flex conduit
UV90-690° lateral view w/6 ft. flex conduit
UV90-990° lateral view w/9 ft. flex conduit


Flame Rod Part #Description
69ND1-1000K412-in.
69ND1-1000K618-in.
69ND1-1000K824-in.


Wiring Base Part #Description
61-3060Closed wiring base
61-5042Open wiring base, cabinet mount


Tech Sheet
