C7027A1049

(0)No Reviews yet
$187.36
SKU: C7027A1049
MINIPEEPER UV SENSOR 1/2"CDUIT

This item is IN STOCK

Current Stock: 8

Details

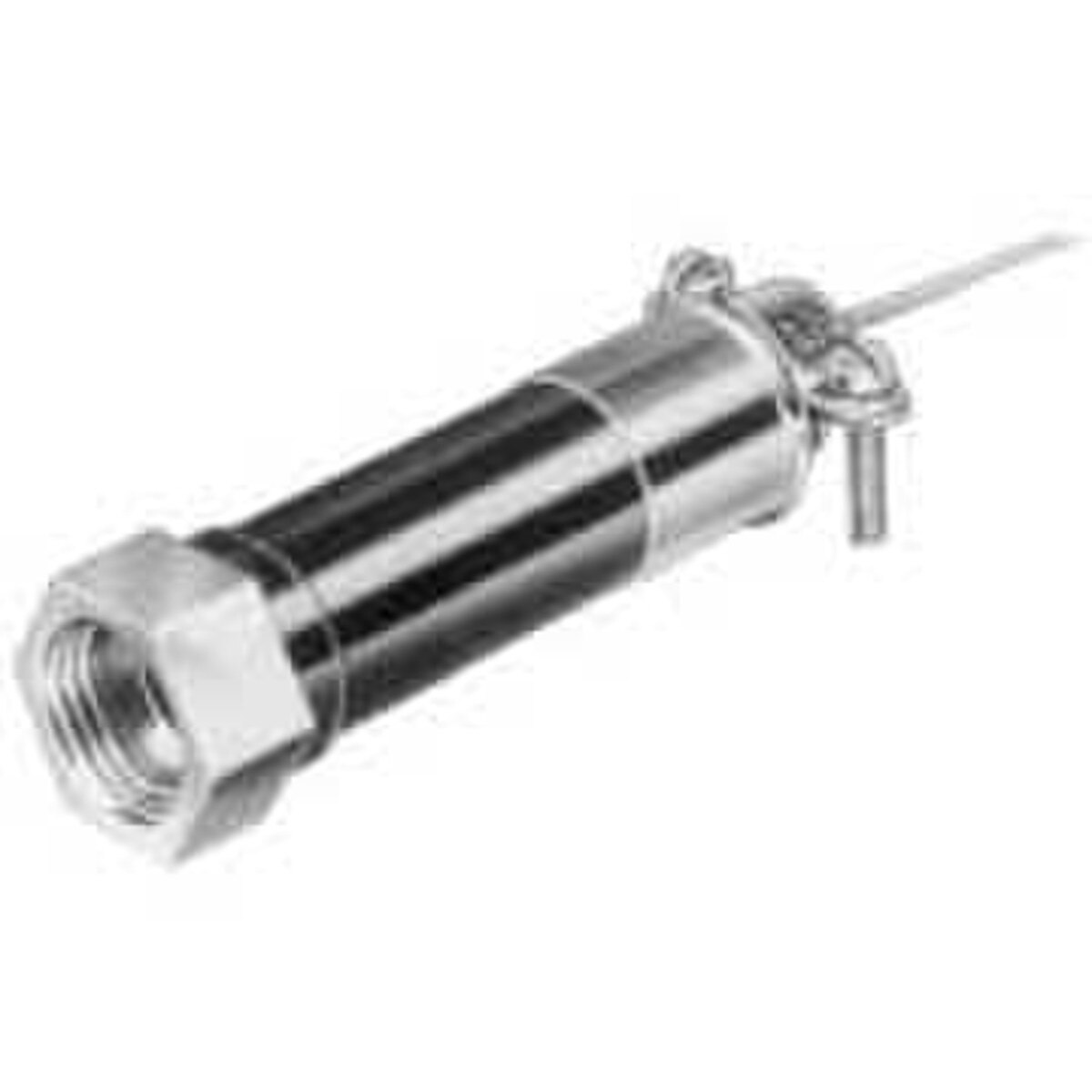

Honeywell C7027A-1049 UV Mini Peeper
C7027A1049 has 8 ft leads 0 deg f - 215 deg f 1/2 inch NPT spud connector Compact flame detector for use with flame safeguard controls with ultraviolet amplifiers. Features Use with Honeywell Flame Safeguard primary safety controls and burners requiring ultraviolet flame detection. C7027A1049 mounts on a 1/2 in. sighting pipe by using an integral collar. Detectors can be wired in parallel for difficult sighting applications. C7027A1049 seals against pressures up to 5 psi (34.5kPa) when correctly installed. Allows for blast tube mounting due to compact size. C7044 mounts with a two screw bracket. The C7044 UV sensor tube is enclosed in a stainless steel housing. C7044 has the capability of side or end viewing in flame monitoring applications. Specifications Description: Minipeeper Type: Ultraviolet, Minipeeper Application Type: Coal fired burners, Gas fired burners, Oil fired burners Lead Length: 96 Inches Electrical Connections: 2 NEC Class 1 Leadwires Ambient Temperature Range (F): 0 to 215F Vibration: .5 G max Mounting: Integral nut for 1/2 in. sighting pipe. Dimensions: 1 1/16 in. diameter x 4 in. long Includes: 1/2 in. NPT threaded spud connector. Comments: Detects ultraviolet radiation in flames Used with: Flame Amplifiers: R7249A, B, R7849A, B, R7749B, R7259, R7290



Specifications
Weight (lbs)10
Ambient Temperature0 to +215 °F|-18 to +102 °C
Electrical ConnectionsTwo (2) NEC Class 1 Color-Coded Leadwires
Shipping Weight10

More detailed usage and technical information is available in this Honeywell manual.
