M7284C1000
Details

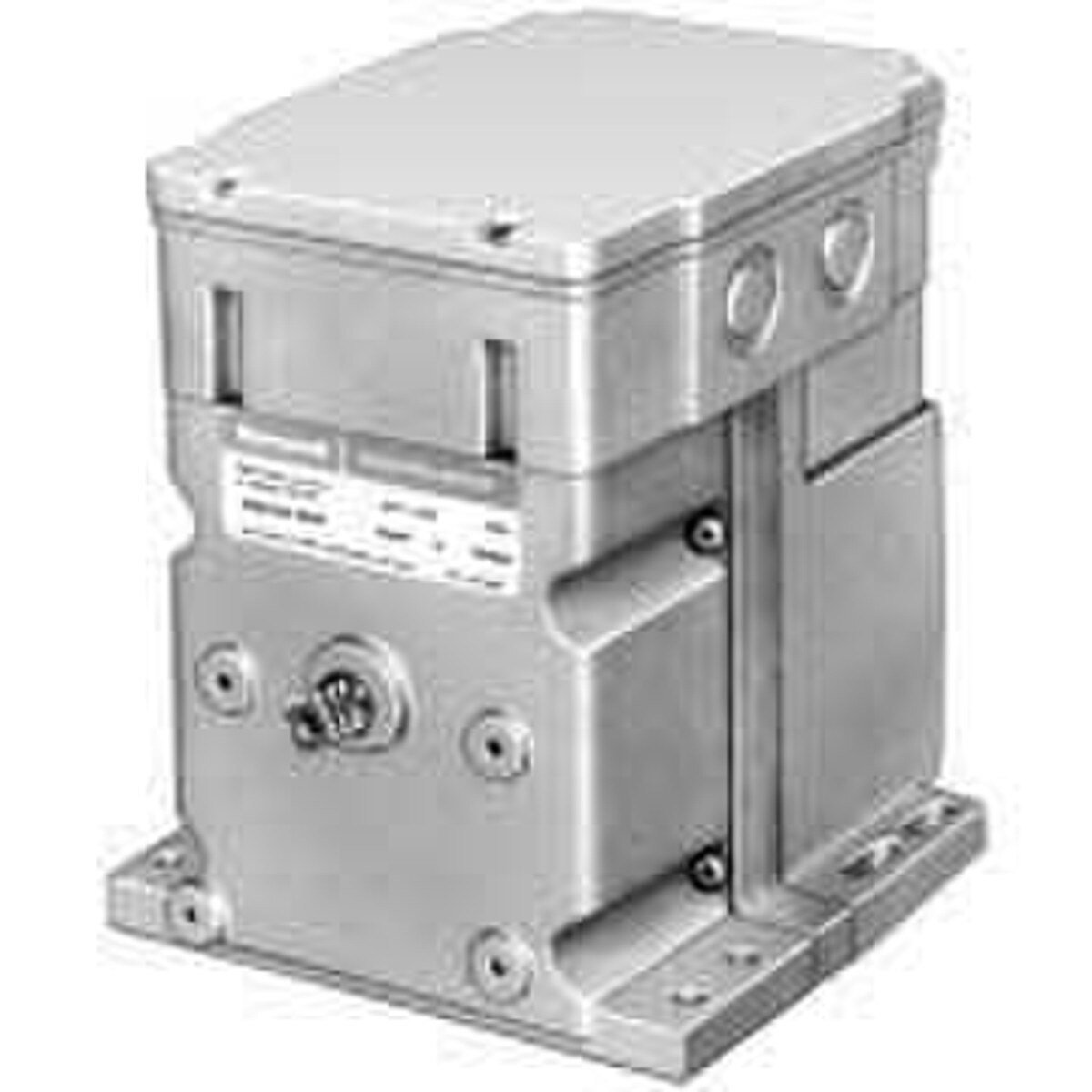

Honeywell M7284C 1000 Series 72 Modutrol IV™ Motor
Honeywell non-spring return motor used to control dampers and valves.
| * | Save up to 75% on M7284C1000 when you buy Acme Controls Rebuilt |
| * | Integral junction box provides NEMA 3 weather protection. | |
| * | Field adjustable stroke for precision damper positioning. | |
| * | Nominal timing standard of 30 seconds (90� stroke), and 60 seconds (160� stroke). | |
| * | Dual shaft (slotted and tapped at both ends). | |
| * | Fixed torque throughout the entire voltage range. | |
| * | 4-20 mA drive signal. | |
| * | Two auxiliary switches with cams provide greater options for control. | |
| * | Seamless integration with electronic controllers. |
Suitable Applications for a Rotary Actuator Motor
Rotary actuator motors are highly versatile and find utility in controlling various mechanical systems. Below are specific scenarios where these motors excel:
- HVAC Systems:
- Dampers: Precisely adjust dampers in heating, ventilation, and air conditioning (HVAC) systems for optimized air flow and temperature control.
- Valves: Manage the opening and closing of valves in both residential and commercial HVAC units, ensuring efficient fluid or air movement.
- Industrial Automation:
- Process Control: Essential in automating industrial processes by controlling the operation of valves and dampers, enhancing precision and reliability.
- Conveyor Systems: Operate conveyor system gates and diverters to streamline material handling tasks in manufacturing plants.
- Water Treatment Plants:
- Flow Regulation: Regulate the flow of water and other fluids in treatment processes, ensuring proper dosage and mixing rates.
- Energy Management:
- Renewable Energy Systems: Fine-tune the position of solar panels or wind turbine blades to maximize energy capture from natural resources.
- Building Automation:
- Lighting Control: Integrate with smart building systems to control lighting based on occupancy or time of day.
- Security: Operate automated barriers and security gates for access control and emergency responsiveness.
By understanding these applications, you can leverage rotary actuator motors to enhance efficiency and control in various mechanical and automated systems.
| Specifications | |
| Mounting | Foot Mount |
| Weight (lbs) | 10 |
| Voltage | 120 |
| Ambient Temperature | -40° to 150°F (-40° to 66°C) |
| Fail Safe | Non-Spring Return |
| Control Signal | 4 to 20 mA |
| Stroke | 90°-160° |
| Rotation | Clockwise |
| Timing | 30s-60s |
| Torque | 150 lb-in |
