Honeywell R7795C1007-REB
Details
NOTE: PURCHASE OF THIS PRODUCT REQUIRES RETURN OF A REPAIRABLE CORE CONTROL. CLICK HERE FOR DETAILS.

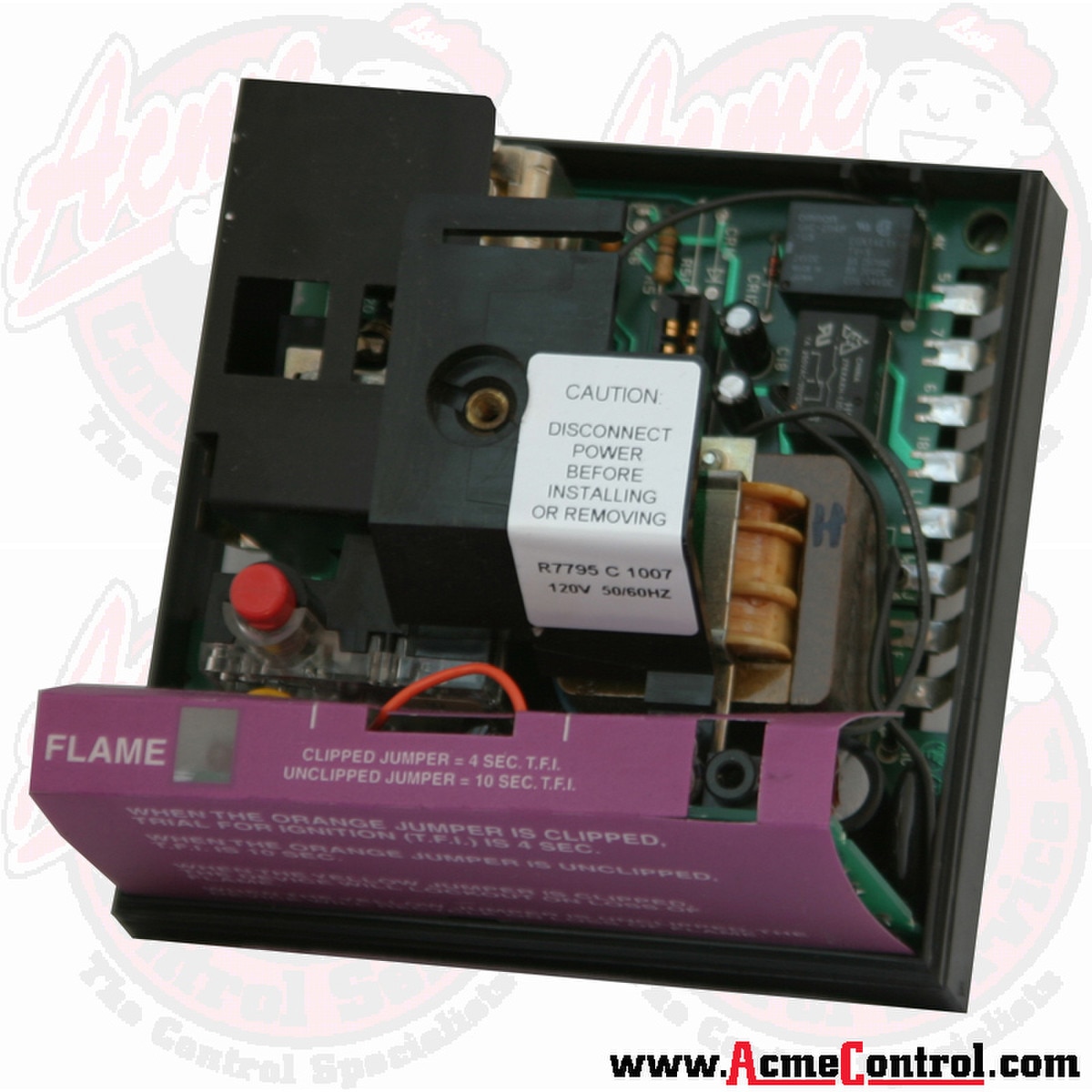

Honeywell R7795C1007 Flame Safeguard Primary Control - Repaired by Acme Controls
Primary control provides flameout protection plus automatic control for commercial and industrial gas and oil burners.
Features| * | Integral solid state UV flame amplifier. | |
| * | Solid state plug-in prepurge timers available. | |
| * | Recycles through prepurge if flame signal is lost while in run. Failure to establish pilot results in a lockout. | |
| * | Safe-start check prevents start-up if flame failure occurs. | |
| * | Field selectable 10 or 4 second TPFI. | |
| * | Mounts and removes easily through use of captive mounting screws. |
| Specifications | |
| Weight (lbs) | 3 |
| Voltage | 120 |
| Frequency | 50/60 Hz |
| Ambient Temperature | -40 to +135°F | -40 to +57°C |
| Electrical Connections | Q795 Subbase |
| Shipping Weight | 4 |
| Mounting | Q795A1004 Subbase |
| Q795A1012 Subbase |
Acme recommends purchasing the entire package, including a timer. It will save you time and aggravation in the long run!
Don't forget your Prepurge Timer!!
|
