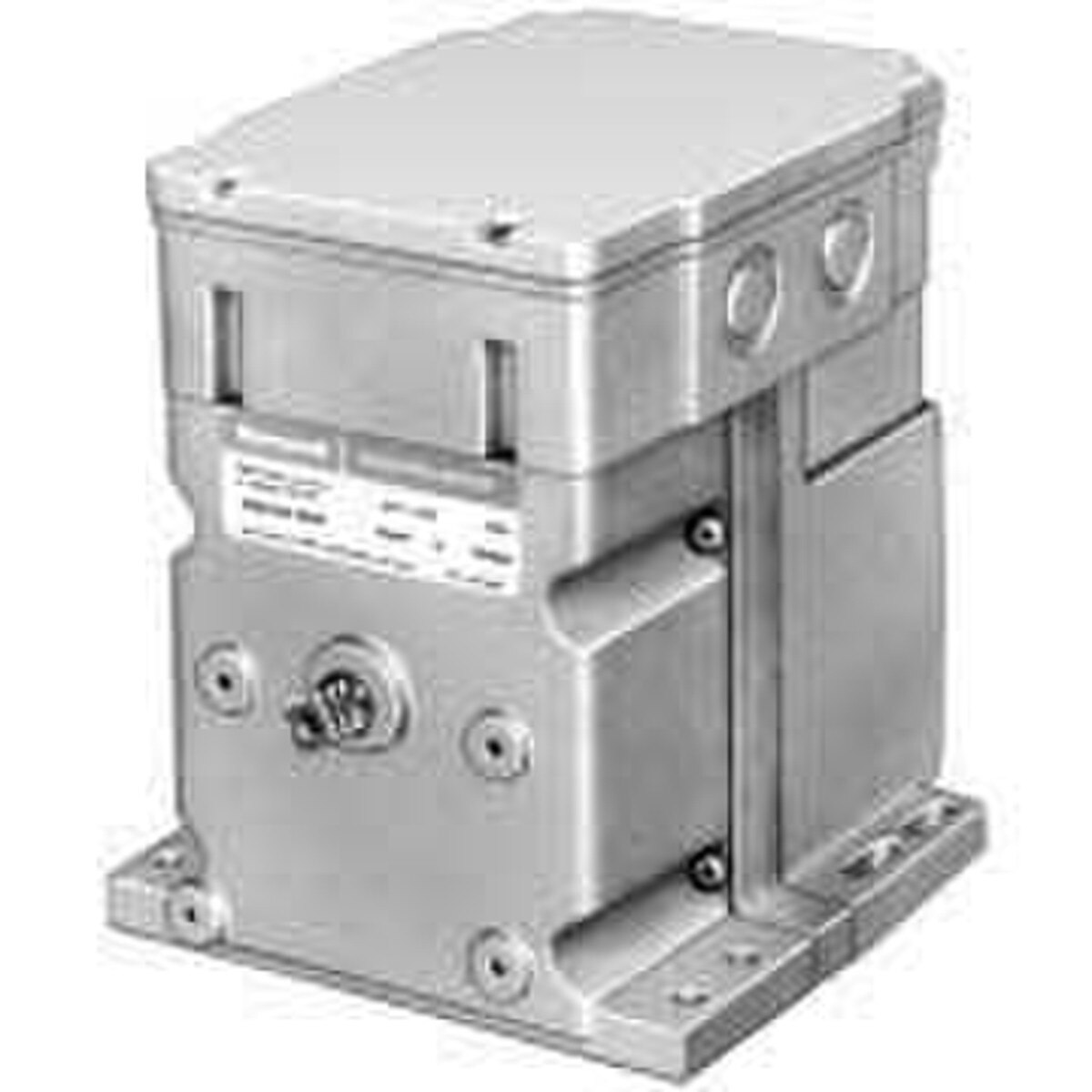

Honeywell M9174C-1025 Modutrol IV Motor 120vAdjT/S 2sw 75#PropMtr
The Honeywell M9174C1025 is also available as a rebuilt/repaired motor. See related items below.
Series 90 Modutrol IV motors non-spring return modulating proportional control motors used with controllers that provide a Series 90 output to operate dampers or valves.
Features
Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position.
Motor and circuitry operate from 24 Vac.
Quick-connect terminals are standard--screw terminal adapter is available.
Adapter bracket for matching shaft height of older motors is available.
Motors have field adjustable stroke (90 to 160 degrees).
Integral auxiliary switches are available factory mounted, or can be field added.
All models have dual shafts (slotted and tapped on both ends).
All models have auxiliary switch cams.
Fixed torque throughout the entire voltage range.
Specifications
Application Type: Electric
Fail Safe Mode: Non-Spring Return
Control Signal: Proportional, 135 ohm
Feedback: no
Motor Shaft: Dual ended Shaft
Stroke: Adjustable; 90 to 160 degrees, Asymmetrical
Torque Rating (lb-in.): 75 lb-in
External Auxiliary Switches Available: Yes
Frequency: 50 Hz, 60 Hz
Power Consumption Driving (VA): 20 VA
Electrical Connections: Quick Connect Terminals
Shaft Dimensions (in.): .375 in
Shaft Shape: Square
Mounting: foot-mounted
Dimensions: 6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
Temperature Range: -40 to 150F
Deadweight Load on Shaft (Either End) (lb): 200 lbs
Deadweight Load on Shaft (Combined on both shafts) (lb): 300 lbs
Nominal Timing (sec): 30 -60 sec
Shaft Rotation (upon control signal increase): Clockwise (as viewed from power end) (normally closed)
Auxiliary Switch Ratings AFL - 120 Vac: 7.2A
Auxiliary Switch Ratings AFL - 240 Vac: 3.6A
Auxiliary Switch Ratings ALR- 120 Vac: 43.2A
Auxiliary Switch Ratings ALR- 240 Vac: 21.6A
Includes: Transformer
Specifications | |
Weight (lbs) | 10 |
Voltage | 120 |
Ambient Temperature | -40 to +150 F|-40 to +66 C |
Fail Safe Mode | Non-Spring Return |
Heading Control Signal | 135 Ohm |
Internal Aux Switch | 2 |
Shipping Weight | 10 |
Mounting | Foot Mounted |
Stroke | 90 in. |
Timing | 30 sec |
Torque | 75 lb·in, 8.5 N·m |
