M7284Q1009

$1,211.54
SKU: M7284Q1009

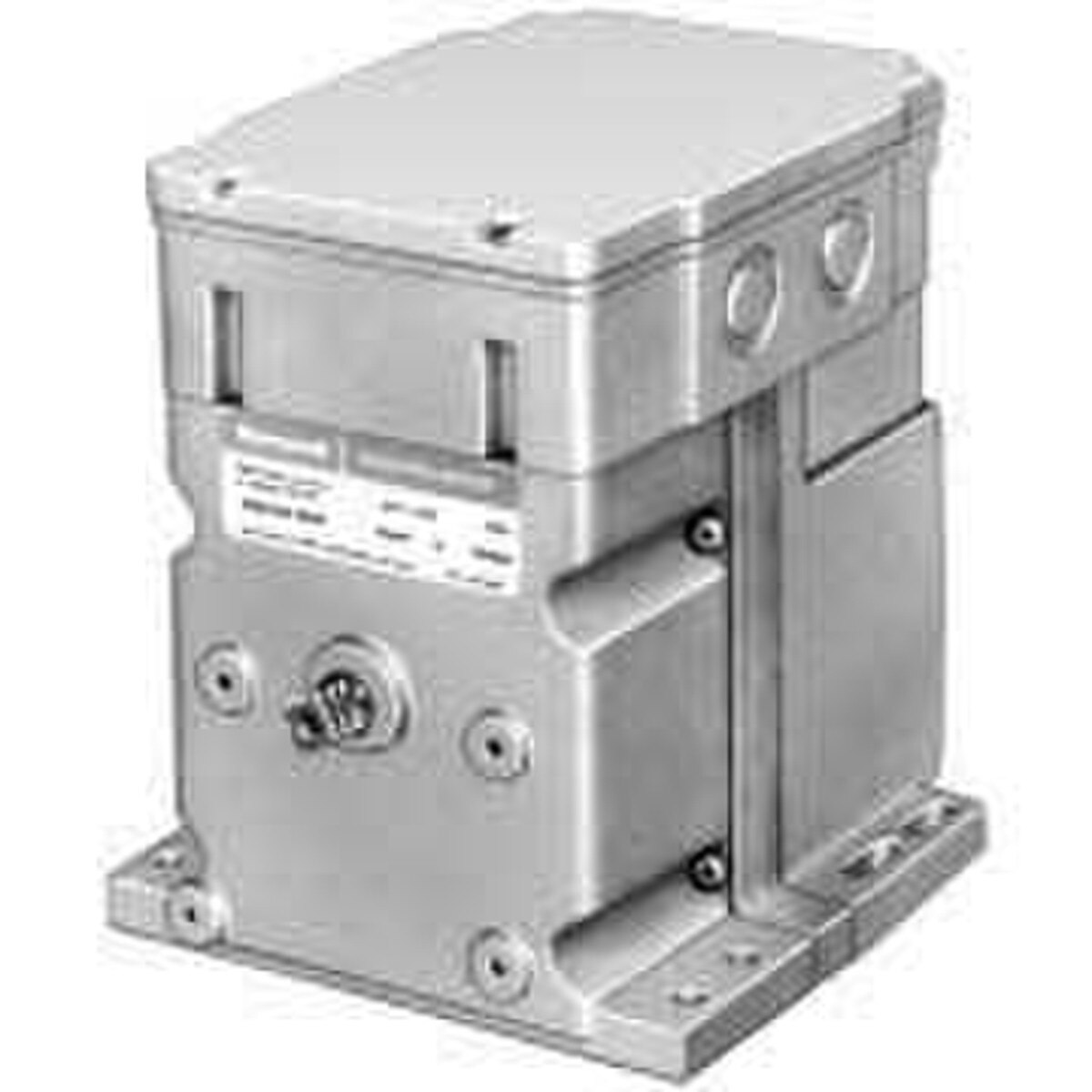

120v Valve/Damper Actuator 90 Deg Stroke 30 Sec Timing 150 LB-IN Torque (coo=usa
In Stock: 4
Back

Details

M7284Q1009 Honeywell
4/20ma2sw120vMtr150#Adj T/S

The Honeywell M7284-Q1009 is also available as a rebuilt service from Acme Controls. See item M7284Q1009-REB below in related items.



Specifications
Weight (lbs)10
Voltage24/120/230
Frequency50/60 Hz
Ambient Temperature-40 to +150 F|-40 to +66 C
ApplicationElectric
Fail Safe ModeNon-Spring Return
Heading Control Signal4 to 20 mA
Internal Aux Switch2
Shipping Weight10
MountingFoot Mounted
Shaft RotationClockwise
Stroke160 Fixed in.
Timing60 sec
Torque150 lb�-in, 17 N�-m
