V4055D1035
Details

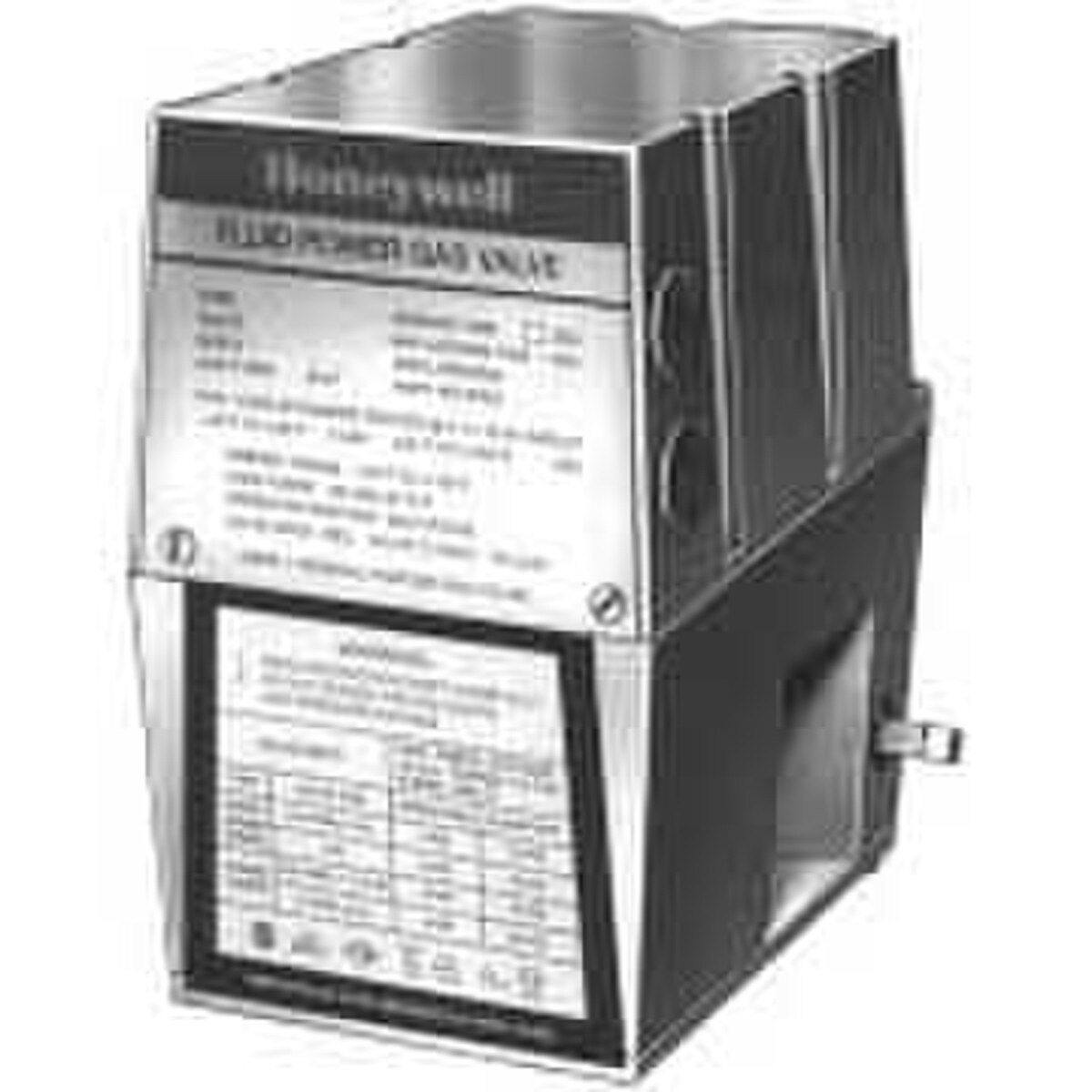

Honeywell V4055D 1035 On-Off Fluid Power Gas Valve Actuator w/Proof of Closure and Aux. Switch
Don't miss your chance to save up to 80% - Acme Controls Rebuilds This Item
| Specifications: | |
| Voltage | 120 |
| Frequency | 60 Hz |
| Timing | 13s |
| Ambient Temperature | -40 to +125°F (-40 to +66°C) |
| Application | Gas |
| Shipping Weight | 18 lbs |
A Note About Timing
While all of these models close in one second, opening time varies by model. Fast-Opening models (13s @60Hz,16s@50Hz) take half the time to open as Standard models (26s @60Hz, 32s @50Hz).
Mounting Positions for Valve and Actuator Combinations
Valve and actuator combinations offer versatile mounting options. For most models, you can position them in any orientation, allowing flexibility in installation.
- 220-240 VAC, 50/60 Hz: - Vertical mount only
- All other models: - Mount in any position
Auxiliary Switch Options
Factory Installed SPDT: This switch comes pre-installed from the factory and is field-adjustable. The actuator is ready-to-use with minimal setup.
Auxiliary Switch Kits: If you prefer to customize or add switches later, there are auxiliary switch kits available that can be installed in the field. These kits offer flexibility and are suitable for various configurations.
