RM7895A1048

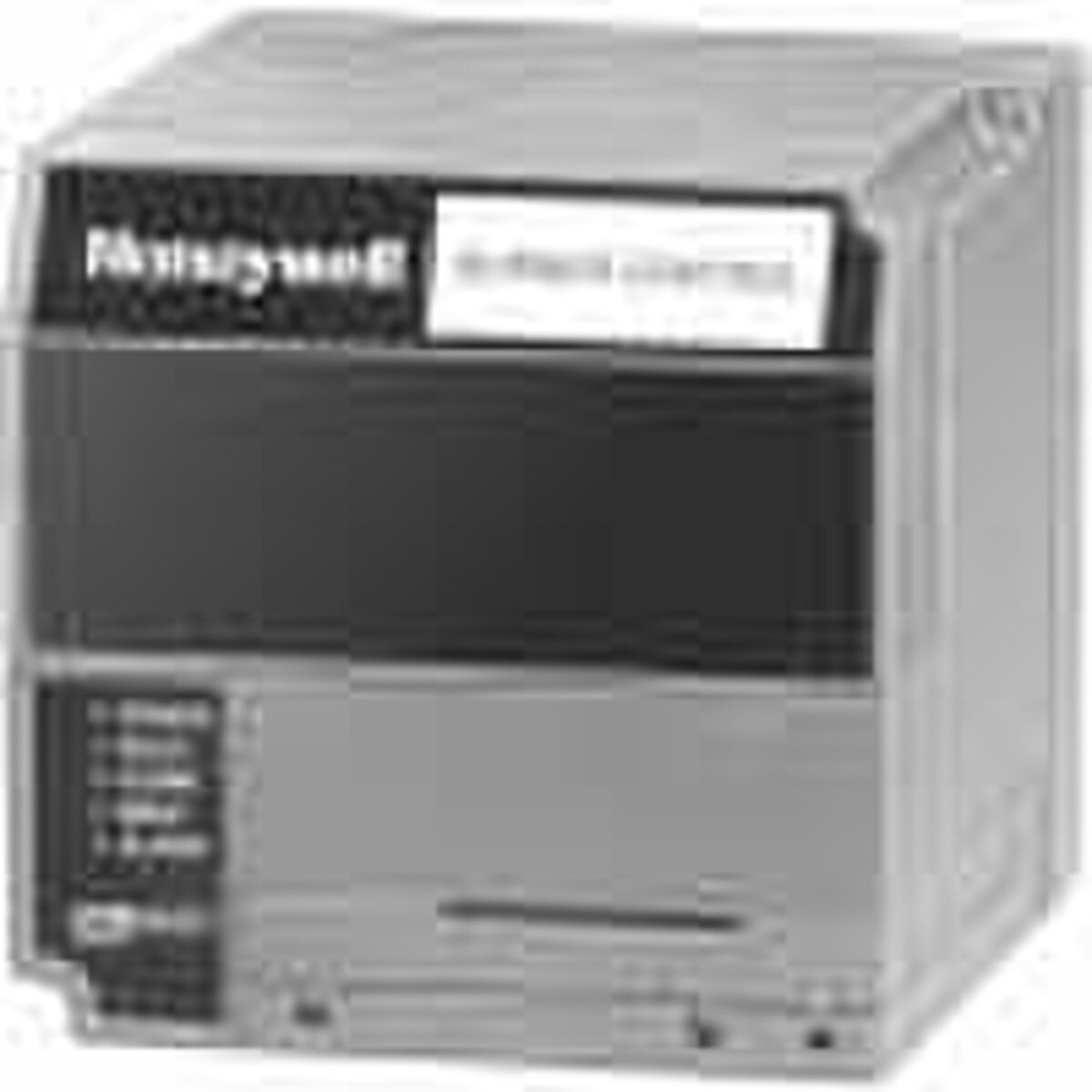

Honeywell Relay RM7895A1048
Also available as a rebuilt control SEE RELATED ITEMS BELOW.

On-Off Primary Control with Shutter Drive Output, Valve Proving Feature, and blinking LED fault annunciation

Overview:
Microprocessor-based integrated burner control for industrial semi-automatically fired gas, oil, coal, or combination fuel single burner applications. Provides level of safety, functional capability and features beyond conventional controls.

Features:
Functions include automatic burner sequencing, flame supervision, system status indication, system or self-diagnostics and troubleshooting.
Subbase, amplifier, and prepurge timer are required for operation.
Options include PC interface, keyboard display module, DATA CONTROLBUS MODULE, remote display module, first-out expanded annunciator, and COMBUSTION SYSTEM MANAGER software.
Five LEDs provide sequence information.
Interchangeable plug-in flame amplifiers.
Optional local or remote annunciation of operation and fault information.
Nonvolatile memory retains history files and sequencing status after power loss.
Optional remote reset capability.
Optional report generation.
Selectable relight or lockout on loss of flame.
Airflow switch check.
Early Spark Termination: Special Sequence

Required Components:
Q7800A,B Universal Wiring Subbases. R7847, R7848, R7849, R7851, R7852, R7861, or R7886 Flame Signal Amplifier. ST7800A Plug-in Purge Timer Card.
