Honeywell R7847B1064-REB

$269.57
SKU: R7847B1064-REB
Honeywell R7847B1064 repair services by Acme Controls

Acme can repair your unit, but due to a lack of available spares, this item is not available for Advance Replacement service. Please click below, under SHOP AT ACME-->REBuilt Controls, for information on how to ship your control to us for repair services.

Back

Details

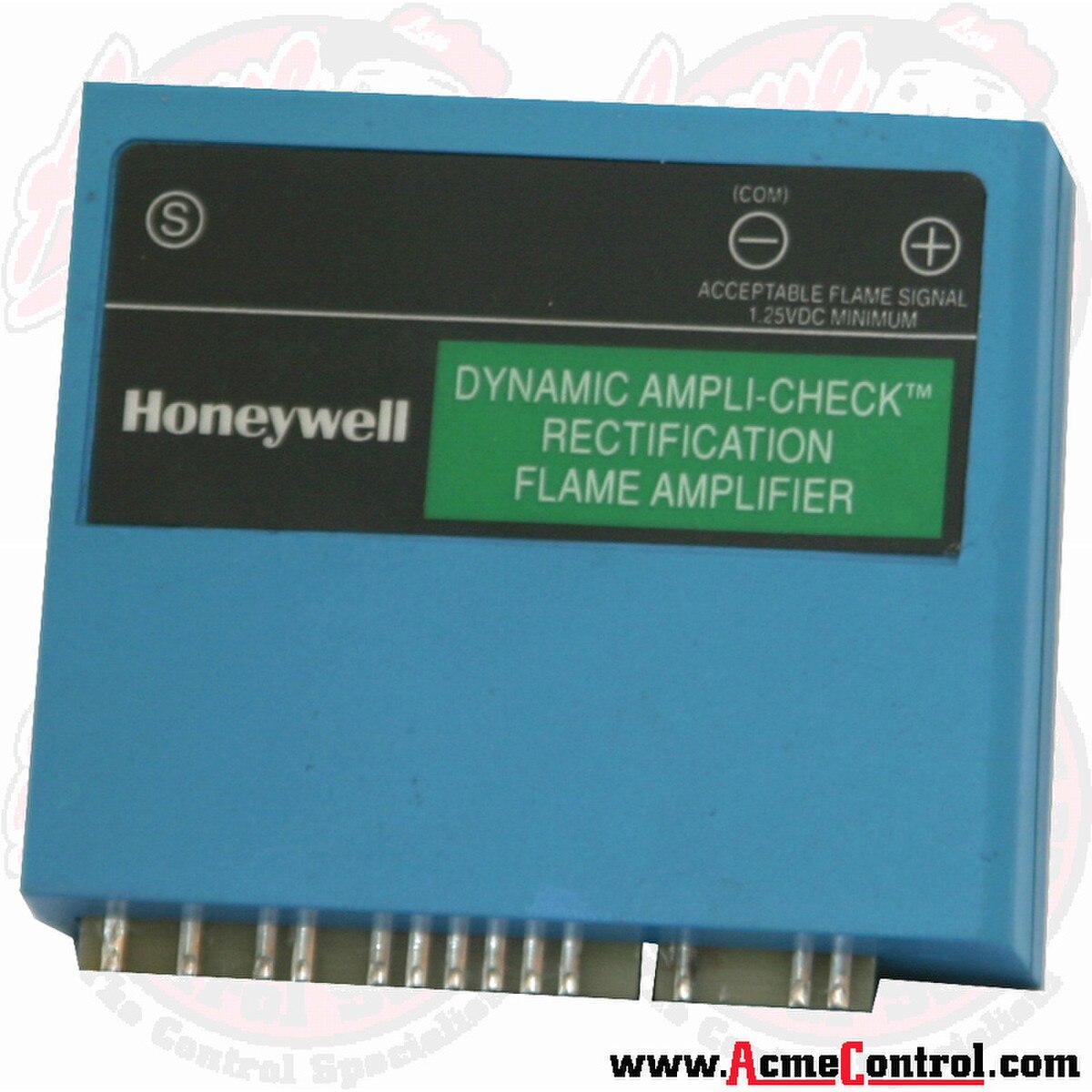

Honeywell R7847B1064 Self Check Rectification Flame Amplifier - Repaired by Acme Controls

Rectification Flame Amplifiers are solid state plug-in amplifiers for use with Honeywell 7800 Series Relay Modules (RM78xx). This item is rebuilt by Acme Controls.

Acme Controls also carries factory new R7847B 1064 at very competitive prices!

Features

*Rectification flame detection when used with appropriate flame detection device.
*Flame failure response time (FFRT) 0.8s-1s.
*PC board edge connector keyed for proper orientation on RM host control.
*Flame signal test jacks measure amplifier flame signal voltage.
*0.0 to 5.0 VDC flame signal strength reading range.
*Honeywell standard color coding (Green = rectification).

Specifications
Weight (lbs)1
Ambient Temperature-40 to +140°F | -40 to +60°C
ApplicationGas & Oil
Flame Response (FFRT)0.8s-1s
Self CheckingDynamic Ampli-Check™
Shipping Weight (lbs)1

Acme recommends purchasing the entire package, including the primary control and a flame amplifier. Search for your Honeywell RM primary control here.



Honeywell RM Flame Amplifiers Tech Sheet
