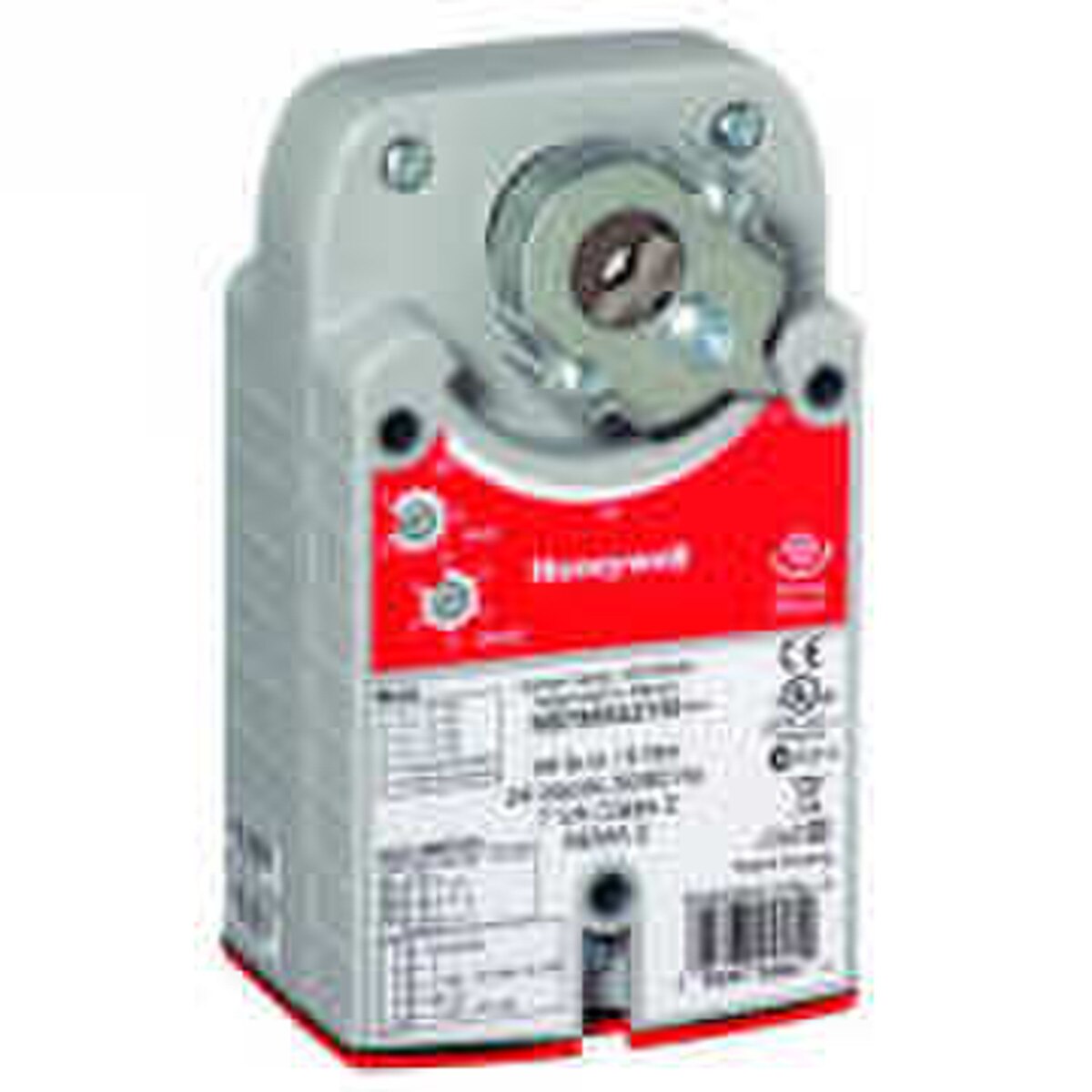

MS4105A1030
Details
Single Rotation 45 seconds, 120/230 Volt
| Specifications | |
| Weight (lbs) | 5 |
| Voltage | 100/250 |
| Frequency | 50/60 Hz |
| Ambient Temperature | -30 to +65 C|-22 to +149 F |
| Application | HVAC |
| Electrical Connections | Enclosed Screw Terminal Strip |
| Heading Control Signal | Two Position; SPST |
| Shipping Weight | 5 |
| Mounting | Direct Coupled |
| Timing (Opening) | 45 sec |
| Torque | 44 lb-in, 5 N-m |
