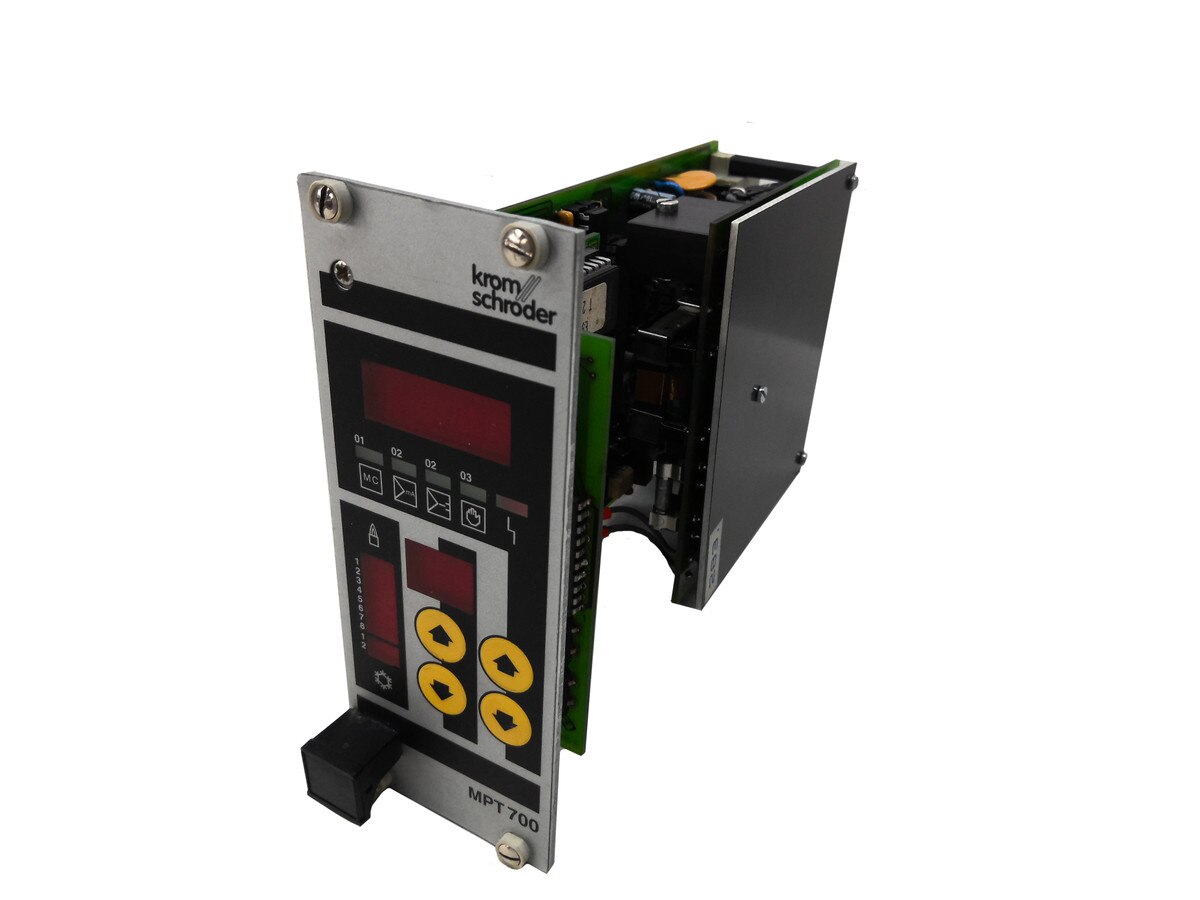

Krom Schroder MPT700-REB
Details
Krom Schroder Impulse System MPT 700 is designed for gas-fired heat-treatment furnaces, capable of controlling up to 8 burners.
The impulse system is designed to integrate seamlessly into industrial environments while offering flexible control and high reliability. Here’s a breakdown of its core specifications:
| ▶ | Operating Voltage: Accepts an input of 110–240 VAC (50/60 Hz), with a tolerance of -15% to +10%. | |||||||||||||
| ▶ | Power Consumption: Requires 10 VA of power, drawing a maximum of 250 mA. | |||||||||||||
| ▶ | Control Circuit Voltage: Operates on 12–24 VDC with up to 1.1 A available. | |||||||||||||
| ▶ | Inputs: | |||||||||||||
| ||||||||||||||
| ▶ | Outputs: Ten open emitter outputs capable of switching 12–24 VDC, each allowing a maximum current of 100 mA (using positive logic). | |||||||||||||
| ▶ | Electrical Connection: Utilizes a 48-pin Type F connector compatible with the DIN 41612 standard. | |||||||||||||
| ▶ | Physical Design: Features a modular open unit format, sized according to European standards (100 x 160 mm main body, with a 50.8 x 128.5 mm front panel). | |||||||||||||
| ▶ | Environmental Ratings: | |||||||||||||
| ||||||||||||||
| ▶ | Weight: The control unit weighs approximately 500 grams. |
These specifications support robust performance and allow the system to be installed in a variety of demanding industrial settings.
The impulse system MPT 700 interfaces seamlessly with a variety of automatic burner control units commonly used in industrial heating applications. It is capable of supplying 24 V signals directly to controllers like the PFU 760 or PFU 780, allowing for precise coordination and safe burner management. For systems that require main voltage operation, such as those equipped with IFS or BCU units, coupling relays can be employed to bridge the electrical requirements. This flexible approach ensures compatibility across a broad range of control scenarios, streamlining integration and enhancing overall system reliability.
If your facility relies on the Krom Schroder MPT 700 or MPT 700A, this product is no longer available from Krom Schroder. Our unique ability to repair and rebuild your MPT 700, and offer a 1-year limited warranty on parts and labor, will give you many more years of reliable uptime.
Acme Controls specializes in repairing a wide range of Krom Schroder models. Send your unit to us for prompt and reliable service. All repairs include a 1-year limited warranty covering parts and labor.
