ML7984A4009
Details

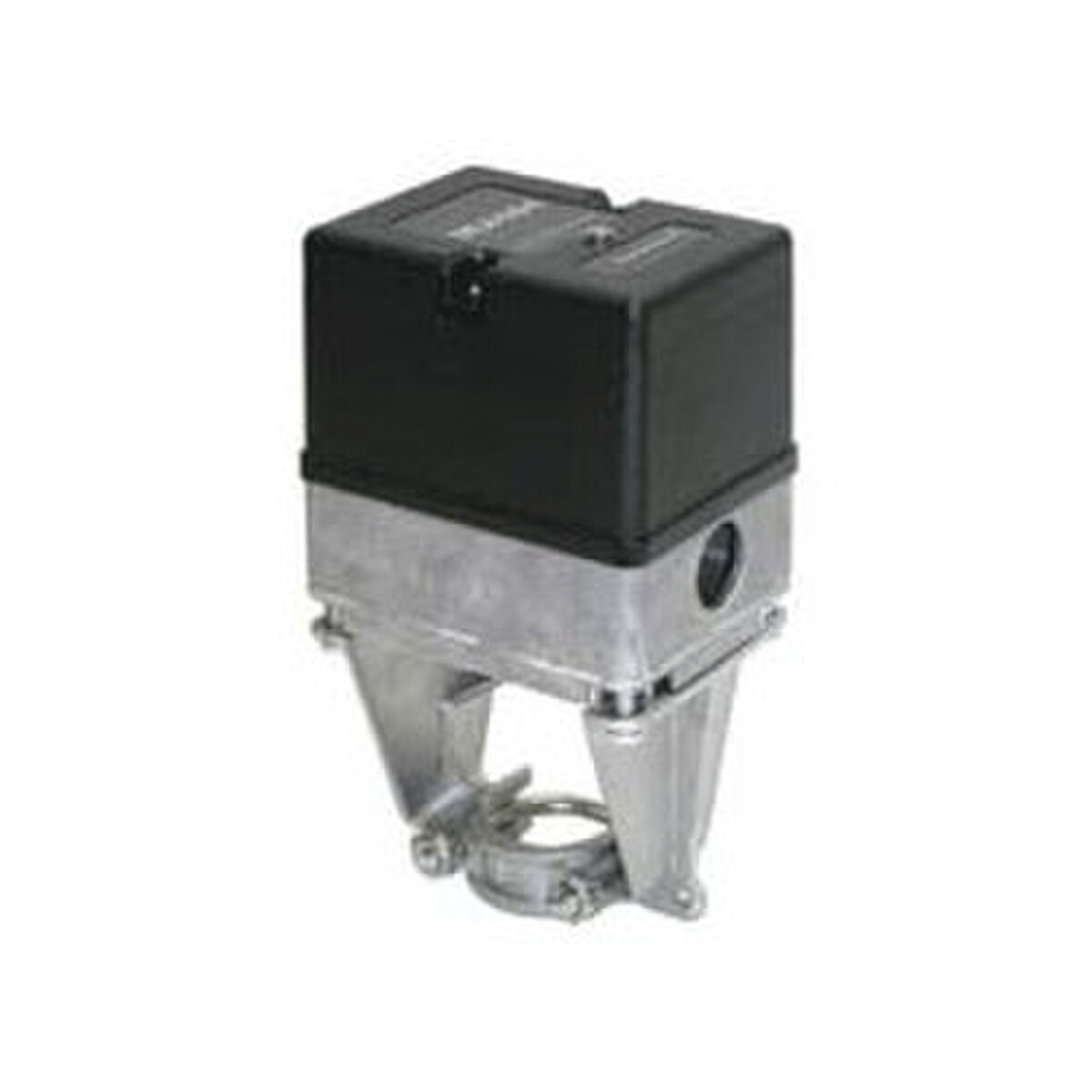

ML7984A4009 by Honeywell
Direct Mount Actuator 70/90ser 160# V5011/5013
| Specifications | |
| Weight (lbs) | 5 |
| Voltage | 24 |
| Frequency | 50/60 Hz |
| Ambient Temperature | 0 to +50 C|+32 to +130 F |
| Electrical Connections | Screw Terminals |
| Heading Control Signal | SuperMod 2-10 Vdc, 4-20 mA, 135 Ohm |
| Shipping Weight | 5 |
| Mounting | Mounts directly to valve |
| Timing (Opening) | 63 sec |
| Torque | 1920 lb-in, 217 N-m |
