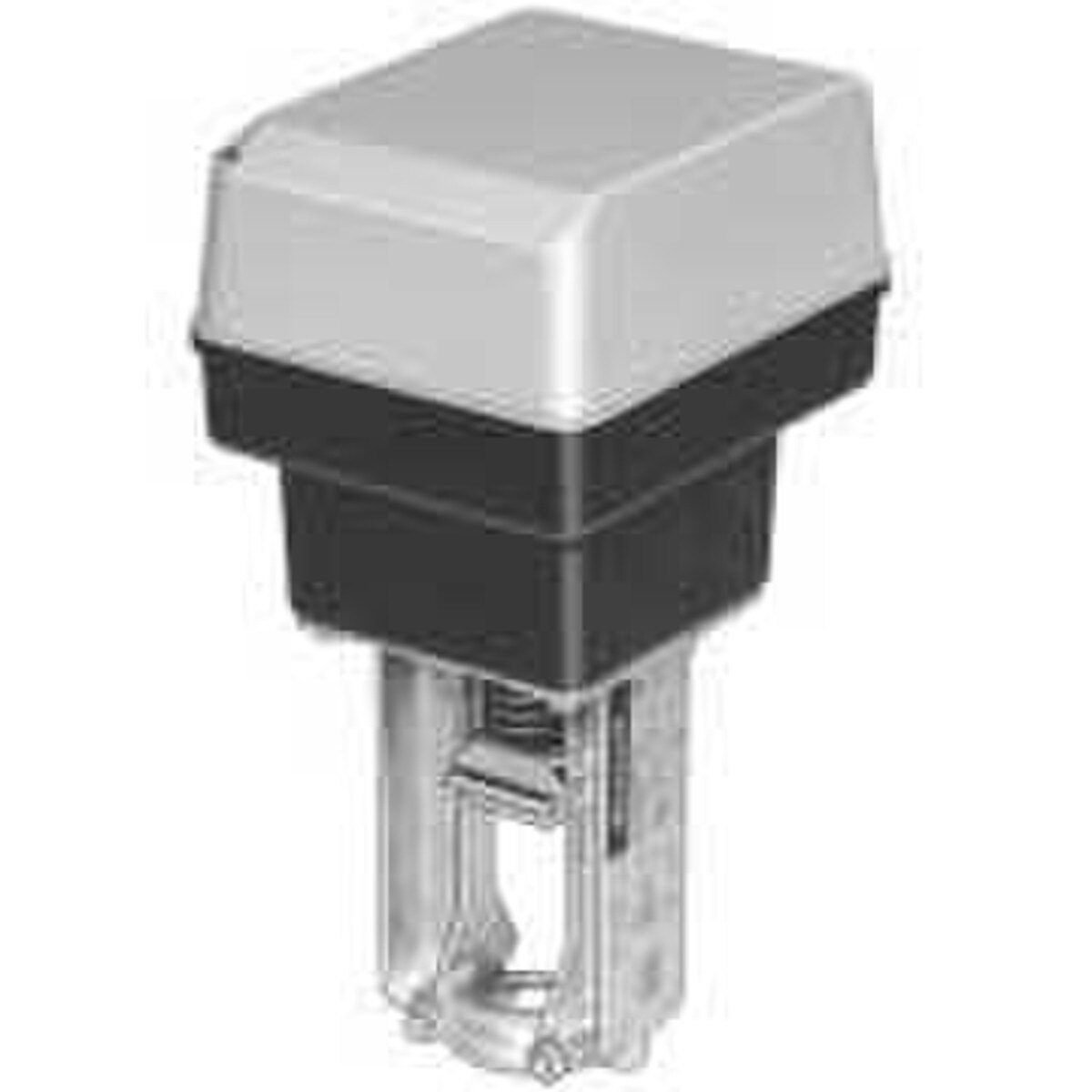

ML6425A3022
Details
| Specifications | |
| Weight (lbs) | 10 |
| Voltage | 24 |
| Frequency | 50/60 Hz |
| Ambient Temperature | -10 to +50 C|+14 to +122 F |
| Application | Steam, Hot Water, & Chilled Water |
| Electrical Connections | Screw Terminals |
| Heading Control Signal | SPDT 2-Position, Floating |
| Shipping Weight | 10 |
| Mounting | Mounts directly to valve |
| Stroke | 3/4 in. |
| Timing (Opening) | 90 sec |
| Torque | 1620 lb-in, 183 N-m |
