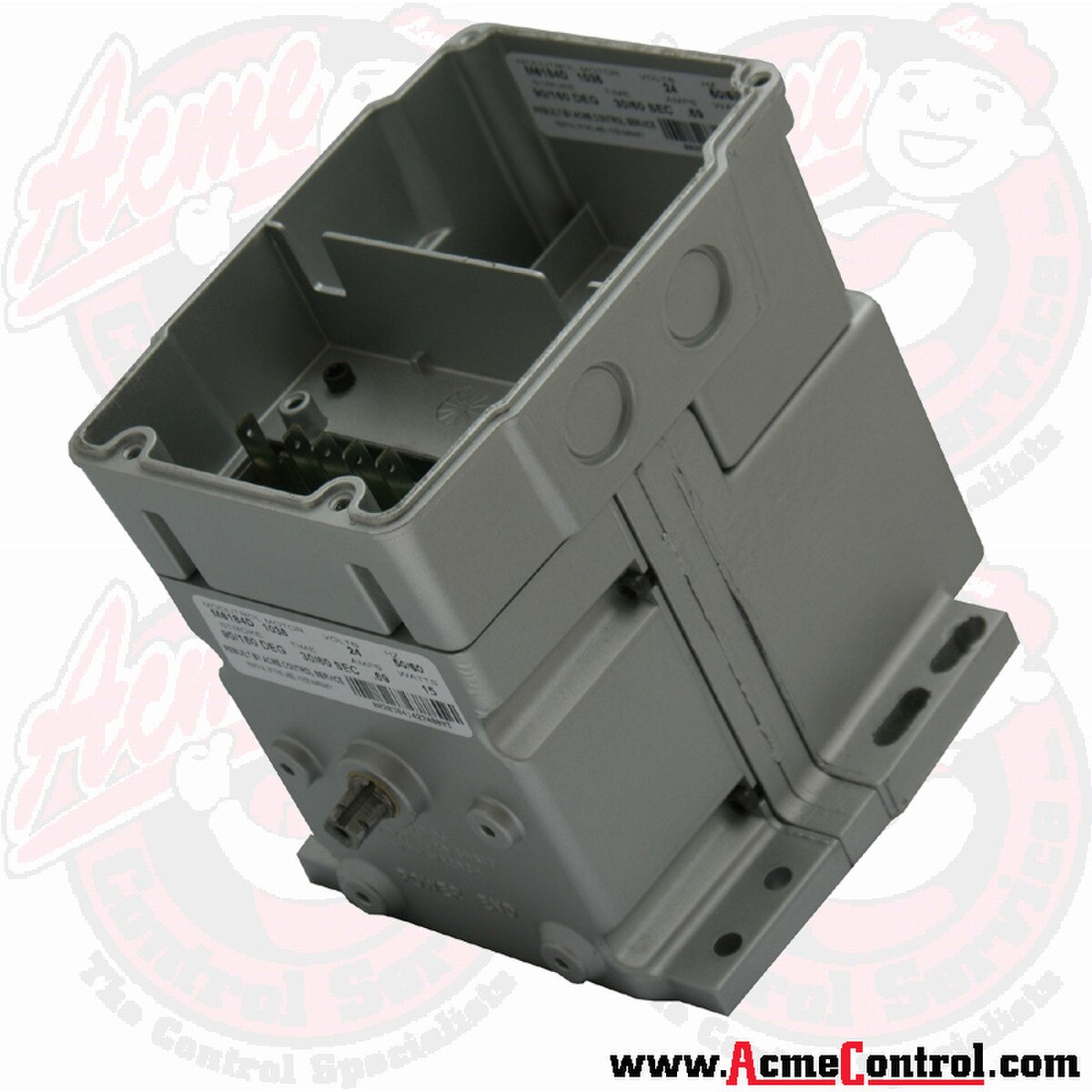

Honeywell M6184D1035-REB
Details
Modutrol IV Motor MOD IV MOTOR 24V 90-30 160-60
| Specifications | |
| Weight (lbs) | 10 |
| Voltage | 24 |
| Frequency | 50/60 Hz |
| Ambient Temperature | -40 to +150 F|-40 to +66 C |
| Fail Safe Mode | Non-Spring Return |
| Heading Control Signal | Floating |
| Shipping Weight | 10 |
| Mounting | Foot-mounted |
| Stroke | 90 to 160 in. |
| Timing | 30 to 60 sec |
| Torque | 150 lb-in |
