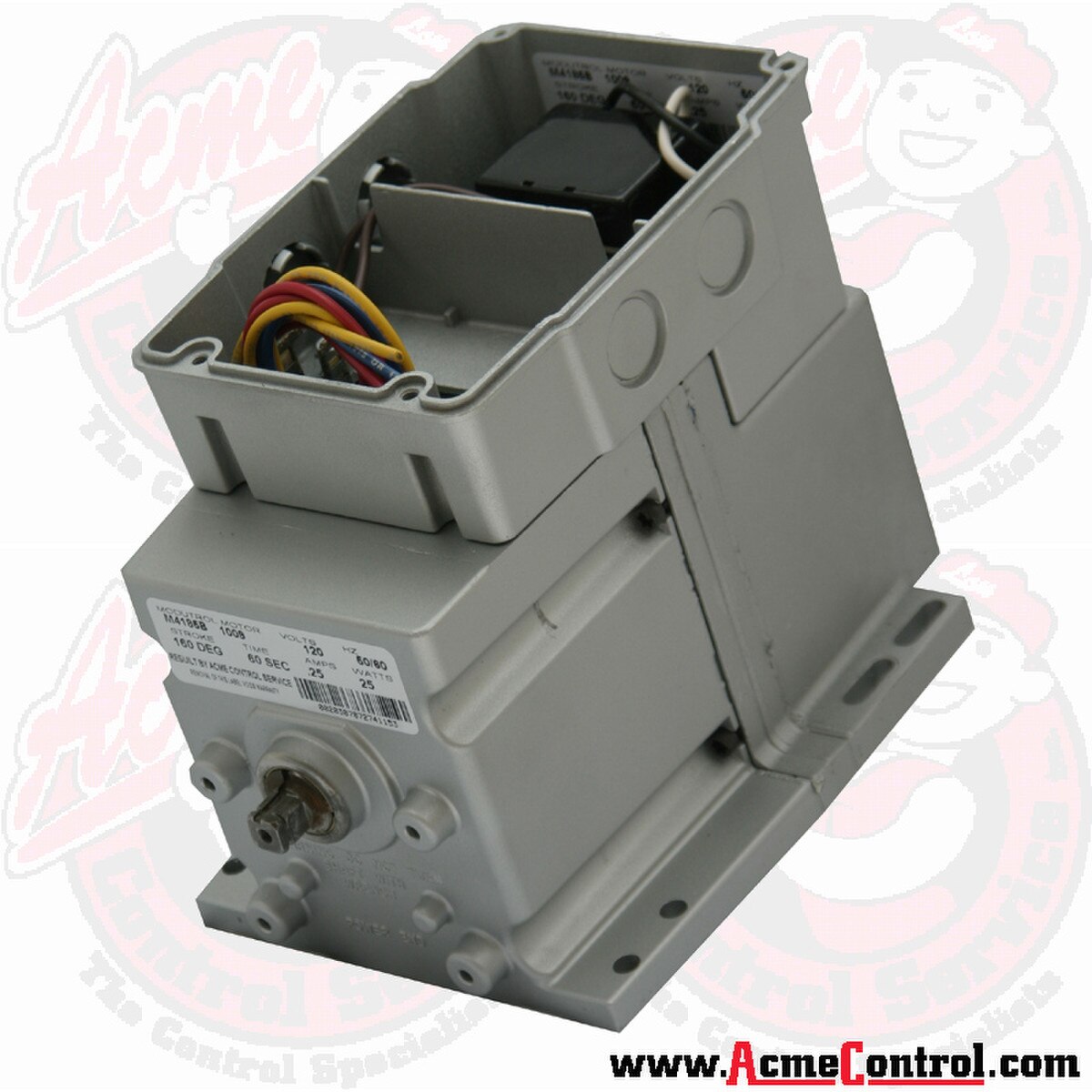

Honeywell M4185B1009-REB
Details
Modutrol IV Motor
| Specifications | |
| Weight (lbs) | 10 |
| Voltage | 120 |
| Frequency | 50/60 Hz |
| Ambient Temperature | -40 to +150 F|-40 to +66 C |
| Application | Electric |
| Fail Safe Mode | Spring Return |
| Heading Control Signal | Two Position (On/Off), SPST |
| Shipping Weight | 10 |
| Mounting | Foot Mounted |
| Shaft Rotation | Clockwise |
| Stroke | 90 to 160 Adjustable in. |
| Timing | 30 to 60 sec |
| Torque | 60 lb·in, 6.8 N·m |
